22316EXW33 Nachi Roller Bearing Japan 80x170x58 Spherical Bearing

22316EXW33 Nachi Roller Bearing Japan 80x170x58 Spherical Bearing

$531.00 USD
$1,413.00 USD $531.00 USD
Sale Sold out
22316EXW33

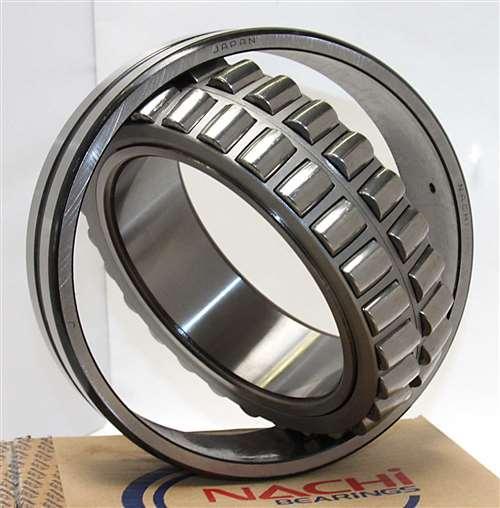

Nachi Spherical Roller Bearing
Steel Cage
80mm x 170mm x 58mm
Made in Japan

22316EXW33 Nachi Spherical Roller Bearing, Steel Cage, Made in Japan, the 22316EXW33 inner diameter is 80mm, the 22316EXW33 outer diameter is 170mm and the 22316EXW33 width is 58mm.

  • 22316EXW33 Spherical Roller Bearing
  • Nachi Spherical Roller Bearing
  • Cage: Steel Cage
  • Dimensions: 80mm x 170mm x 58mm/Metric
  • ID (inner diameter)/Bore: 80mm
  • OD (outer diameter): 170mm
  • Width: 58mm
  • Size: 80 x 170 x 58 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 595,000 N
  • Static load rating Cor: 520,000 N
  • Limiting Speed:
    • Grease Lubrication: 2,600 RPM
    • Oil Lubrication: 3,400 RPM
  • Made in Japan

Nachi Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. NACHI Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. Nachi Spherical Bearings have two designs, regular spherical roller bearings and spherical roller thrust bearings.
