5206 Nachi Angular Contact Bearing - Double Row - 30x62x23.8 Japan Made

5206 Nachi Angular Contact Bearing - Double Row - 30x62x23.8 Japan Made

$48.86 USD
$51.43 USD $48.86 USD
Sale Sold out

5206 Nachi Row Angular Ball Bearing
30mm x 62mm x 23.8mm
Made in Japan
One Bearing

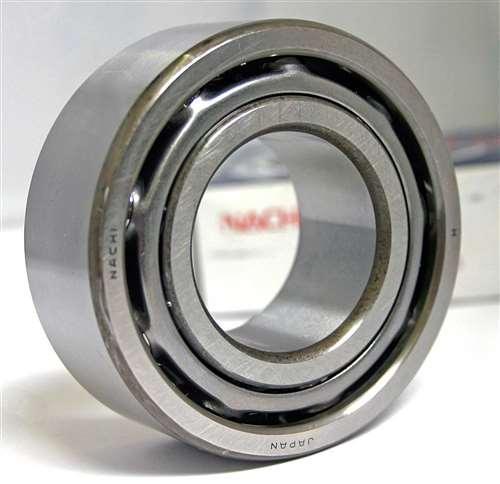

5206 Nachi Double Row Angular Ball Bearing, Made in Japan, inner diameter is 30mm, outer diameter is 62mm and width is 23.8mm.

  • 5206 Nachi Angular Ball Bearing
  • Nachi Double Row Angular Ball Bearing
  • Closures: Open
  • Dimensions: 30mm x 62mm x 23.8mm/Metric
  • ID (inner diameter)/Bore: 30mm
  • OD (outer diameter): 62mm
  • Width: 23.8mm
  • Size: 30 x 62 x 23.8 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 30,500 N
  • Static load rating Cor: 21,700 N
  • Limiting Speed:
    • Grease Lubrication: 8,000 RPM
    • Oil Lubrication: 11,000 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
