Nachi

5207-2NSL Nachi Angular Contact Bearing - Double Row - 35x72x27 Bearing

5207-2NSL Nachi Angular Contact Bearing - Double Row - 35x72x27 Bearing

$112.86 USD
$118.80 USD $112.86 USD
Sale Sold out

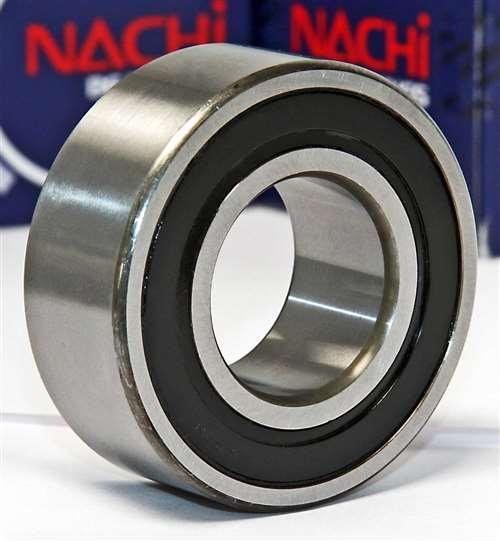

5207-2NSL Nachi Angular Ball Bearing
Double Sealed
35mm x 72mm x 27mm
Made in Japan

5207-2NSL Nachi Double Row Angular Ball Bearing, bearing is Double Sealed, Made in Japan, inner diameter is 35mm, outer diameter is 72mm and width is 27mm.

  • 5207-2NSL Nachi Ball Bearing
  • Nachi Double Row Angular Ball Bearing
  • Closures: Double Sealed
  • Dimensions: 35mm x 72mm x 27mm/Metric
  • ID (inner diameter)/Bore: 35mm
  • OD (outer diameter): 72mm
  • Width: 27mm
  • Size: 35 x 72 x 27 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 35,000 N
  • Static load rating Cor: 25,900 N
  • Limiting Speed:
    • Grease Lubrication: 7,000 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
