Nachi

5209ZZ Nachi Angular Contact Bearing - Double Row - 45x85x30.2 Bearing

5209ZZ Nachi Angular Contact Bearing - Double Row - 45x85x30.2 Bearing

$129.72 USD
$136.55 USD $129.72 USD
Sale Sold out

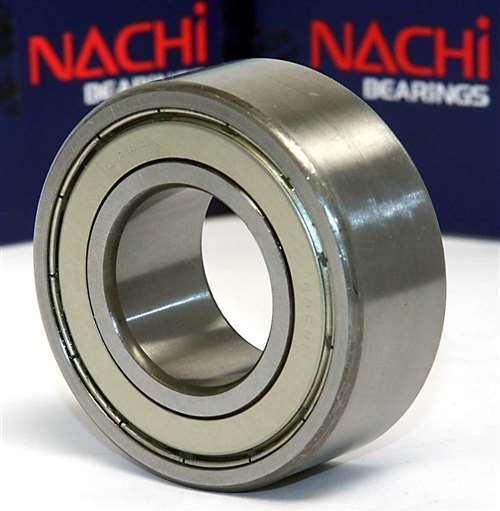

5209ZZ Nachi Double Row Angular Ball Bearing
Double Shielded
45mm x 85mm x 30.2mm
Made in Japan

5209ZZ Nachi Double Row Angular Ball Bearing, bearing is Double Shielded, Made in Japan, inner diameter is 45mm, outer diameter is 85mm and width is 30.2mm.

  • 5209ZZ Ball Bearing
  • Nachi Double Row Angular Ball Bearing
  • Closures: Double Shielded
  • Dimensions: 45mm x 85mm x 30.2mm/Metric
  • ID (inner diameter)/Bore: 45mm
  • OD (outer diameter): 85mm
  • Width: 30.2mm
  • Size: 45 x 85 x 30.2 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 42,500 N
  • Static load rating Cor: 34,500 N
  • Limiting Speed:
    • Grease Lubrication: 5,500 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
