AK10GWUU NB 10mm Double Wide Compact Block Unit Motion Linear Bearing

AK10GWUU NB 10mm Double Wide Compact Block Unit Motion Linear Bearing

$64.99 USD
$99.00 USD $64.99 USD
Sale Sold out

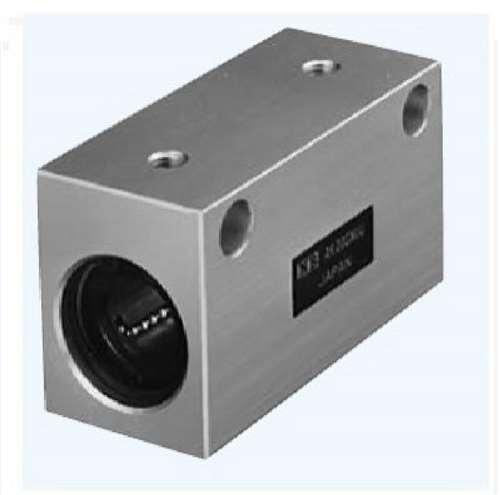

AK10GWUU NB Double Wide Compact Block:Slide Unit
Made in Japan:NB Linear Systems


AK10GWUU NB Double Wide Compact Block, The inner diameter is 10mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • AK10GWUU NB Bearing
  • Linear Ball Bushing
  • Shaft Diameter: 10mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 588 N
  • Static load rating Cor: 1100 N

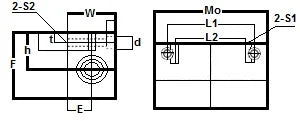

Inner Contact Diameter Outer Dimensions Mounting Dimensions
mm tolerance h E W L F L2 S1 L1 t S2 d H
10 0-9 19 13 26 68 32 36 M6 50 6 M5 8 6
