SMK16W 16mm Slide Bush Bushings Miniature Motion Linear Bearing

SMK16W 16mm Slide Bush Bushings Miniature Motion Linear Bearing

$126.99 USD
$194.00 USD $126.99 USD
Sale Sold out

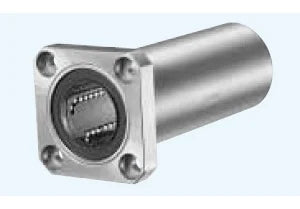

SMK16W Square Flange Double wide Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


 SMK16W Square Double wide Linear Slide Bush, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
  • SMK16W Bearing
  • Linear Slide Bush
  • Retainer Material: Steel
  • Bearing Inner Diameter: 16mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 1230 N
  • Static load rating Cor: 2350 N

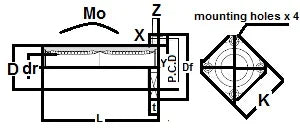

Major Dimensions
dr D L Df K t P.C.D X x Y x Z
mm tolerance mm tolerance
16 0-10 28 0-16 70 48 37 6 38 4.5 x 7.5 x 4.1
