SMST10GWUUE NB 10mm Slide Bush Bushings Miniature Linear Bearing
SMST10GWUUE NB 10mm Slide Bush Bushings Miniature Linear Bearing
Regular price
$191.99 USD
Regular price
$294.00 USD
Sale price
$191.99 USD
Unit price
/
per
Couldn't load pickup availability

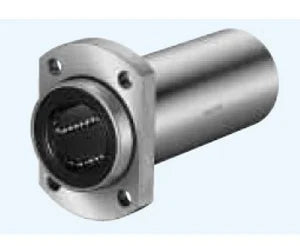

| SMST10GWUUE NB Two Side Cut Double Wide Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMST10GWUUE NB Two Side Cut Double Wide Flange Anticorrosion Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

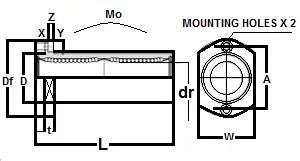

| Major Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | A | X x Y x Z | ||
| mm | tolerance | mm | tolerance | ||||||
| 10 | 0-10 | 19 | 0-16 | 55 | 40 | 25 | 6 | 29 | 4.5 x 7.5 x 4.1 |
