SMTC10GUU NB 10mm Slide Bush Bushings Miniature Motion Linear Bearing

SMTC10GUU NB 10mm Slide Bush Bushings Miniature Motion Linear Bearing

$101.99 USD
$156.00 USD $101.99 USD
Sale Sold out

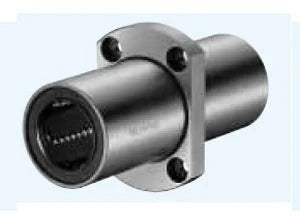

SMTC10GUU NB Two Side Cut Center Flange Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

SMTC10GUU NB Two Side Cut Center Flange Linear Slide Bush, Bearing is seals on both sides, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.

  • SMTC10GUU NB Bearing
  • Linear Slide Bush
  • Retainer Material: Resin
  • Bearing Inner Diameter: 10mm
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 588 N
  • Static Load Rating Cor: 1100 N

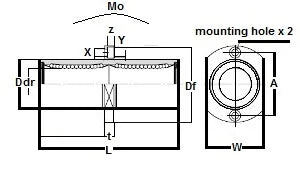

Major Dimensions
dr D L Df W t A X x Y x Z
mm tolerance mm tolerance
10 0-10 19 0-16 55 40 25 6 29 4.5 x 7.5 x 4.1
