SMTC30UU NB 30mm Slide Bush Bushings Motion Linear Bearing

SMTC30UU NB 30mm Slide Bush Bushings Motion Linear Bearing

$410.99 USD
$629.00 USD $410.99 USD
Sale Sold out

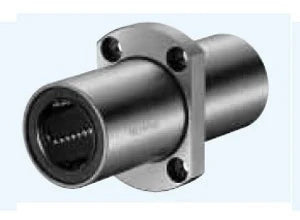

SMTC30UU NB Two Side Cut Center Flange Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

SMTC30UU NB Two Side Cut Center Flange Linear Slide Bush, Bearing is seals on both sides, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.

  • SMTC30UU NB Bearing
  • Linear Slide Bush
  • Retainer Material: Steel
  • Bearing Inner Diameter: 30mm
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 2490 N
  • Static Load Rating Cor: 5490 N

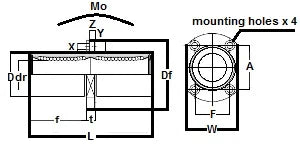

Major Dimensions
dr D L Df W t A F X x Y x Z
mm tolerance mm tolerance
30 0-12 45 0-19 123 74 51 10 49 35 6.6 x 11 x 6.1
