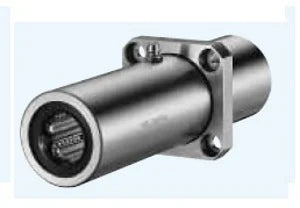

TRKC6GUU NB 6mm Slide Bush Bushings Miniature Motion Linear Bearing

TRKC6GUU NB 6mm Slide Bush Bushings Miniature Motion Linear Bearing

$118.99 USD
$182.00 USD $118.99 USD
Sale Sold out
TRKC6GUU NB Triple Wide Intermediate Position
Square Flange Slide Bush
Made in Japan:NB Linear Systems

TRKC6GUU NB Triple Wide Intermediate Position Square Flange Miniature Slide Bush, The retainer material is resin, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.

  • TRKC6GUU NB Bearing
  • Linear Slide Bush
  • Bearing Inner Diameter: 6mm
  • Retainer Material: resin
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 323 N
  • Static Load Rating Cor: 530 N

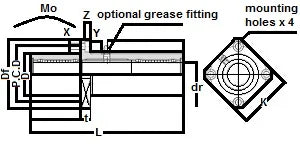

Major Dimensions
dr D L Df t P.C.D X x Y x Z
mm tolerance mm tolerance
6 0-12 15 0/-18 51 32 5 24 3.5 x 6 x 3.1
