16mm Bearing/Bushing LMF16UU Linear Motion LBF16UU

16mm Bearing/Bushing LMF16UU Linear Motion LBF16UU

$14.99 USD
$23.99 USD $14.99 USD
Sale Ausverkauft

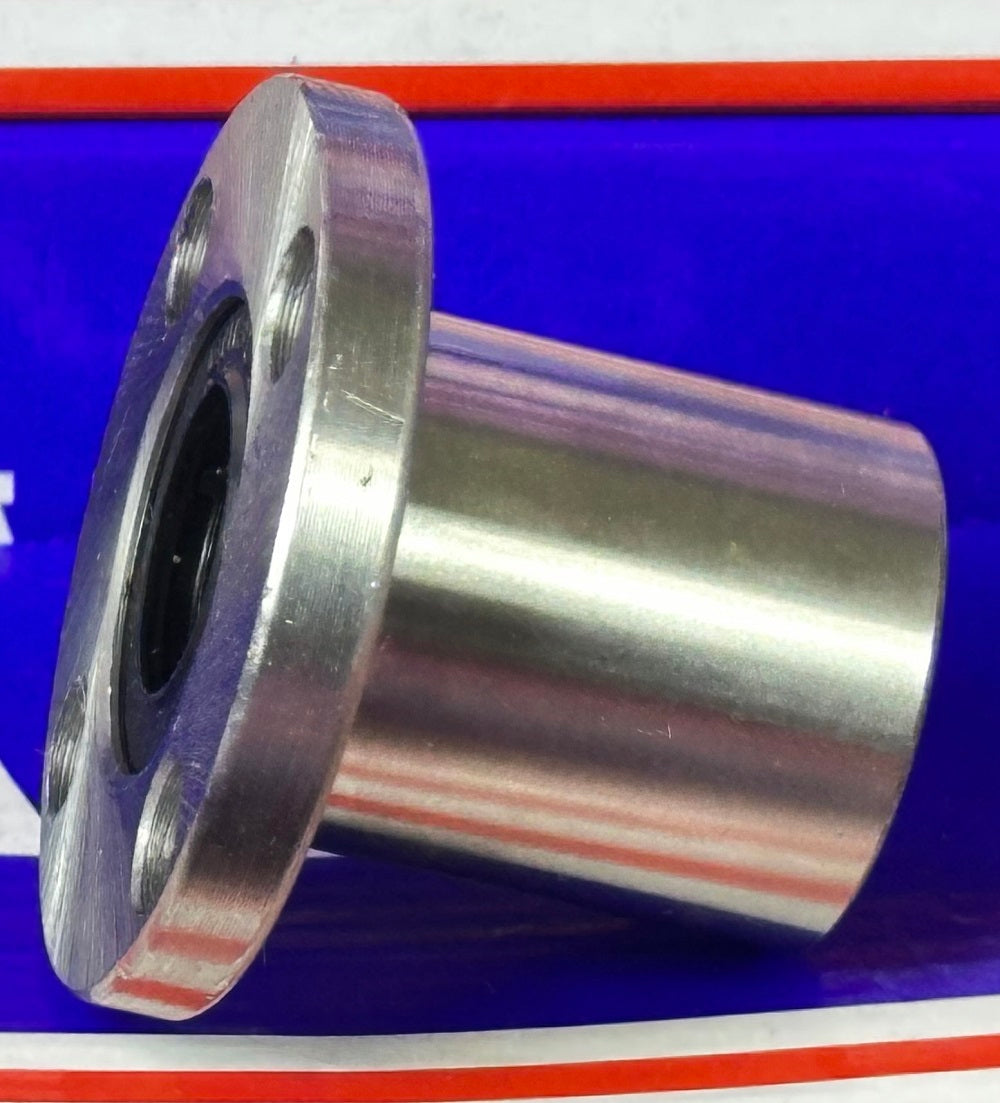

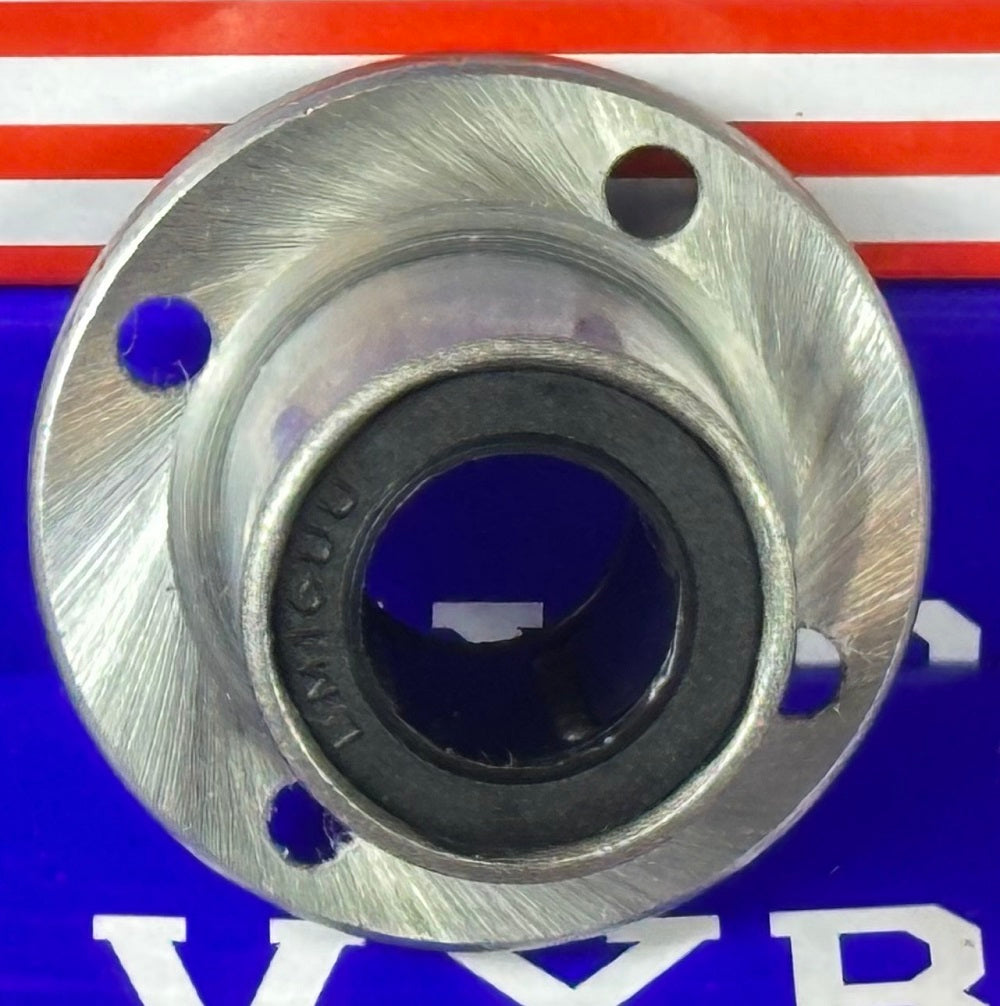

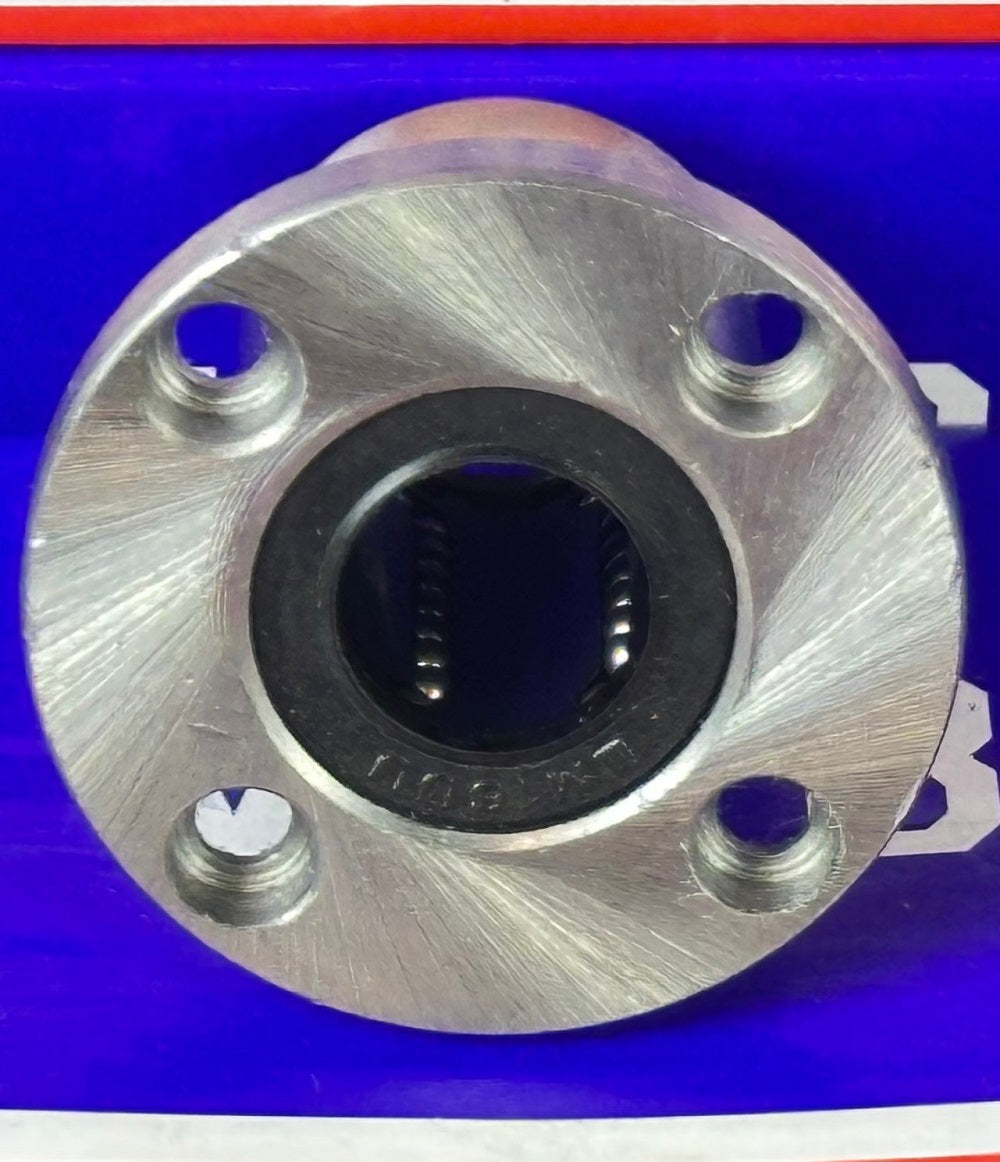

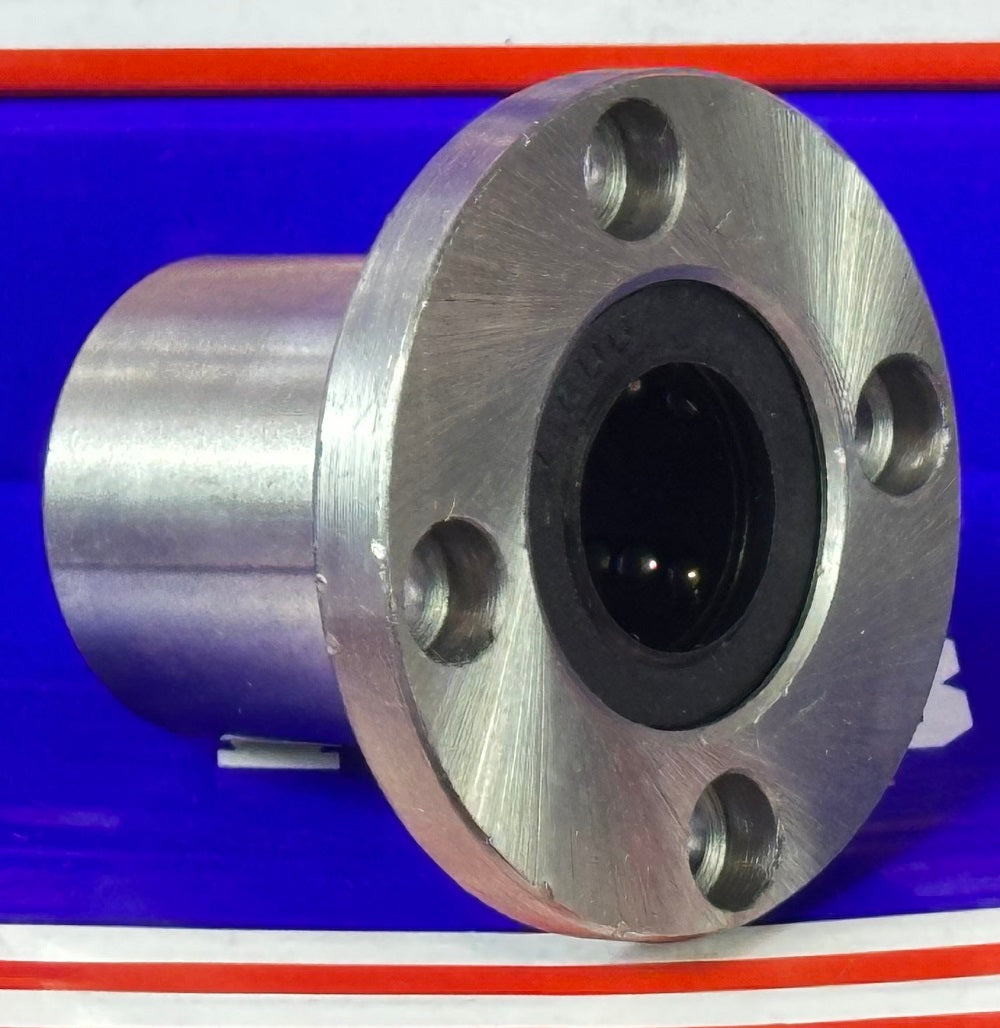

LMF16UU Linear Ball Bearing
Works with 16mm Shafts


 LMF16UU Linear Ball Bearing works with a 16mm Shafts, Size is 16mm x 28mm x 37mm, the inner Diameter is 16mm, the outer Diameter is 28mm and the Length is 37mm, Bearing has Built-in Rubber Seals.
  • LMF16UU Bearing
  • Linear Ball Bearing
  • Size: 16mm x 28mm x 37mm
  • Inner Diameter: 16mm
  • Outer Diameter: 28mm
  • Length: 37mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 774 N
  • Static load rating Cor: 1180 N

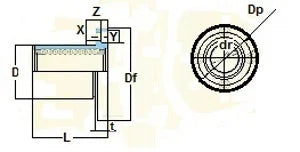

Dimensions(mm)
dr D L t Dp X Y Z
mm tolerance mm tolerance mm tolerance
16 0-9 28 0-16 48 37 6 38 4.5 7.5 4.1
