E5016X NNTS1 Nachi Sheave Bearing 2-Row Full Complement Bearing

E5016XNNTS1 Nachi Sheave Bearing, E5016XNNTS1 Nachi is a double row full Complement cylindrical roller bearing, E5016XNNTS1 Nachi has hightest dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, E5016XNNTS1 Nachi lubricates with a lithium soap-based grease containing an EP additive, E5016XNNTS1 Nachi lubricates through lubrication hole & grooves only in inner ring.

• E5016XNNTS1 Nachi Sheave Bearing
• Double Row Full Complement Cylindrical Roller Sheave Bearing

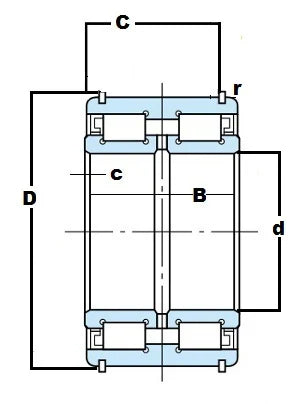

• Dimensions: 80mm x 125mm x 60mm/Metric
• ID (inner diameter)/Bore: 80mm
• OD (outer diameter): 125mm
• Width: 60mm
• Size: 80 x 125 x 60 mm
• Snap Ring: WRE 125 (not included)
• Quantity: 1 Bearing
• Dynamic load rating Cr: 250,000 N
• Static load rating Cor: 430,000 N
• Limiting Speed:
  • Grease Lubrication: 1,250 RPM
• Operating temperature: Suitable for -30 to +120 Celsius
• Snap Ring: WRE 125 (not included)
• Application: Highly suitable in rope sheave
• E5016XNNTS1 = SL04 5016 PP
• E5016XNNTS1 = NNF5016 ADA-2LSV
• E5016XNNTS1 = NAS5016UUNR
• E5016XNNTS1 = NNF5016EDA.2LS.V
• Made in Japan
