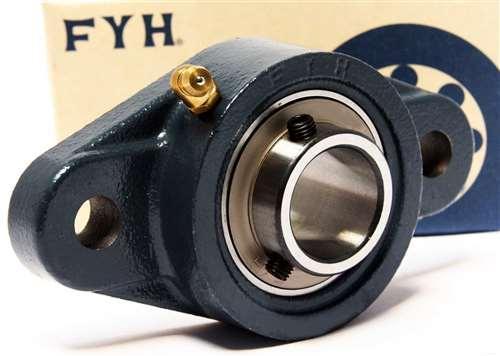

This two-bolt flange has a bolthole center dimension equal to that of the diagonal bolthole center of the four-bolt flange. Therefore, the two different styles are compatible, however, the two-bolt style utilizes less space and also weighs less. Applications are Roller conveyor and environments where mounting area is limited.
- UCFL-203E Bearing
- Mounted Bearings
- Bolt Size: 5/16"
- Basic Load (Cr): 12,800 N
- Basic Load (Cor): 6,650 N
- Bearing No: UC203
- Quantity: One bearing

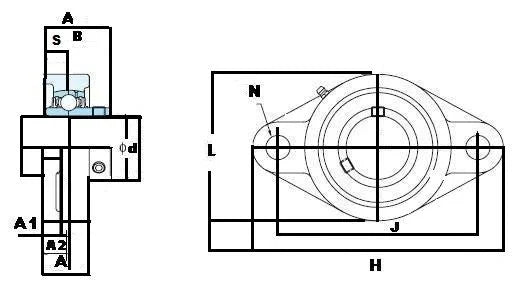

| Dimensions (mm) |
|---|
| d |
H |
L |
A |
J |
N |
A1 |
A2 |
A0 |
B |
S |
| 17 |
98 |
56 |
25.5 |
76.2 |
10 |
11 |
15 |
33.3 |
31 |
12.7 |
|
