NATB59/22 Combined Needle Roller Bearing - 3-Point Contact Ball Bearing 22x39x25mm
NATB59/22 Combined Needle Roller Bearing - 3-Point Contact Ball Bearing 22x39x25mm
Normaler Preis
$48.00 USD
Normaler Preis
$96.00 USD
Verkaufspreis
$48.00 USD
Grundpreis
/
pro
Verfügbarkeit für Abholungen konnte nicht geladen werden
NATB 59/22 Needle Roller Bearing |
|
NATB59/22 is a combined Needle Roller Bearing with 3-Point Contact Ball Bearing 22x39x25 combined bearing type, needle roller bearing with angular contact thrust bearing, inner diameter is 22mm, the outer diameter is 39mm, width of the cone (inner ring) is 25mm.
|

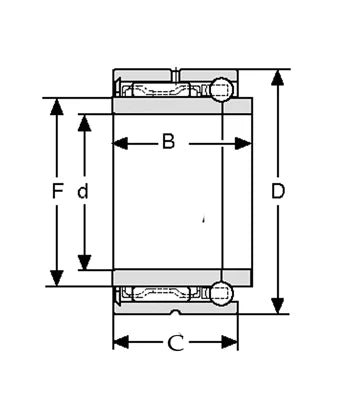

| d | D | B | C | F | r12 min. | da min. | Da max. | ra max | C | C0 |
| 22mm | 39mm | 25mm | 23mm | 28mm | 0.3mm | 24mm | 37mm | 0.3mm | 23.3 KN | 32 KN |
