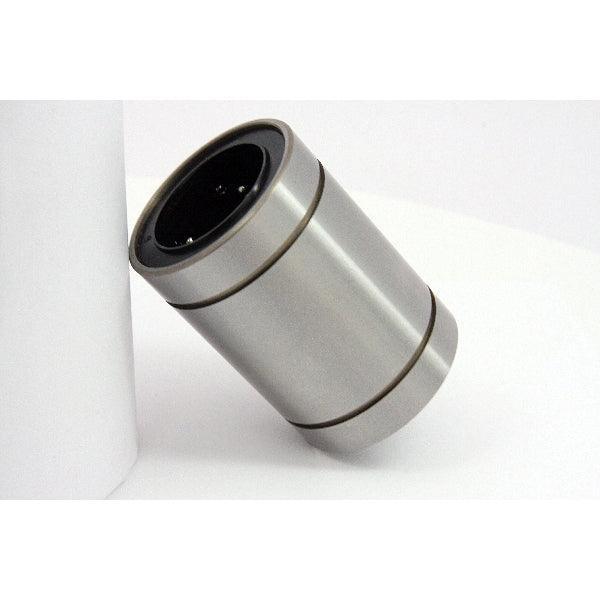

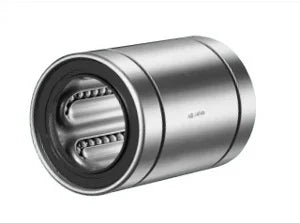

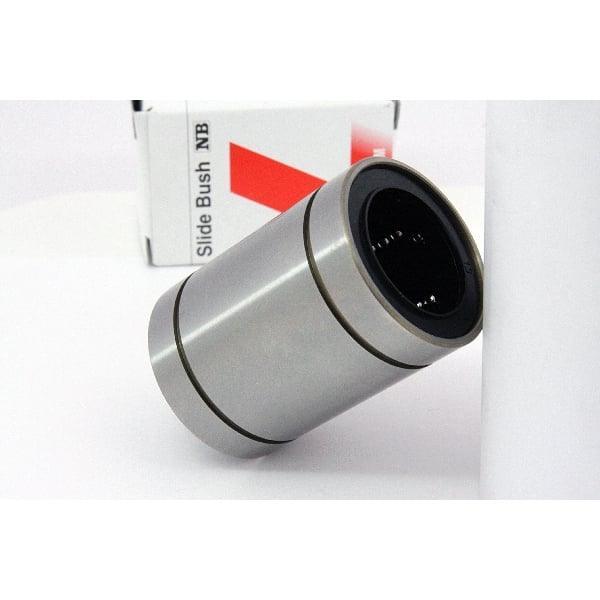

SM20UU-P 20mm Slide Bush Ball Linear Miniature Motion Bearing

SM20UU-P 20mm Slide Bush Ball Linear Miniature Motion Bearing

Normaler Preis $55.99 USD
Normaler Preis $86.00 USD Verkaufspreis $55.99 USD
Sale Ausverkauft
SM20UU-P Type Seals on Both Sides: Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


SM20UU-P Linear Slide Bush, bearing is Seals on Both Sides, bearing is a Precision accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
  • SM20UU-P Bearing
  • Linear Slide Bush
  • Shaft Diameter: 20mm
  • Accuracy Grade: Precision
  • Number of Ball Circuits: 5
  • Dynamic Load Rating Cr: 882 N
  • Static load rating Cor: 1370 N
  • Quantity: 1 Bearing

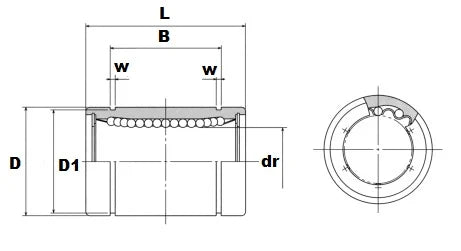

Major dimensions Eccentricity Radial Clearance
dr D L B W D1 Precision High
mm tolerance mm tolerance mm tolerance mm tolerance
precision high
20 0-7 0-10 32 0-16 42 0-0.2 30.5 0-0.2 1.6 30.5 10 15 -6
