TRFC16UU NB 16mm Slide Bush Bushings Miniature Motion Linear Bearing

TRFC16UU NB 16mm Slide Bush Bushings Miniature Motion Linear Bearing

$183.99 USD
$282.00 USD $183.99 USD
Sale Ausverkauft

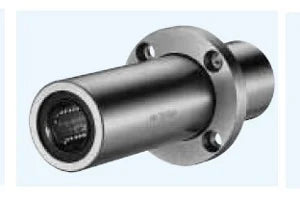

TRFC16UU NB Triple Wide Intermediate Position
Round Flange Slide Bush
Made in Japan:NB Linear Systems

TRFC16UU NB Triple Wide Intermediate Position Round Flange Miniature Slide Bush, The retainer material is steel, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.

  • TRFC16UU NB Bearing
  • Linear Slide Bush
  • Bearing Inner Diameter: 16mm
  • Retainer Material: steel
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 1230 N
  • Static Load Rating Cor: 2350 N

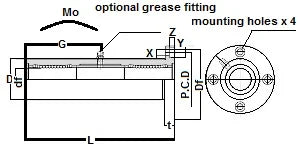

Major Dimensions
dr D L Df t P.C.D X x Y x Z
mm tolerance mm tolerance
16 0-15 32 0-25 103 54 8 43 5.5 x 9 x 5.1
