1/2" Bearing HCF201-8 Square Flanged Cast Housing Mounted Bearing - Eccentric Collar

1/2" Bearing HCF201-8 Square Flanged Cast Housing Mounted Bearing - Eccentric Collar

$21.00 USD
$40.00 USD $21.00 USD
Oferta Agotado
HCF201-8 Four Bolt Flange Unit
Set Screw Type with Eccentric Collar
1/2" inch Inner Diameter


HCF201-8 Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 1/2" inch

  • HCF201-8 Ball Bearing
  • Flange Mounted Bearing Eccentric Collar
  • Bolt Size: 3/8" inch
  • Shaft Diameter: 1/2" inch
  • Basic Load (Cr): 12.8 KN
  • Basic Load (Cor): 6.65 KN
  • Bearing No: HC201-8
  • Housing No: F203
  • Quantity: 1 Bearing

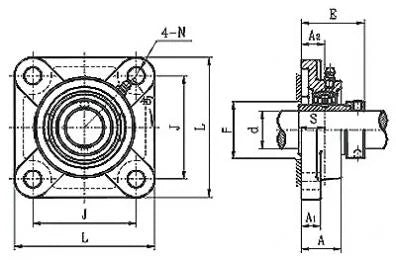

Dimensions (inches)
A A1 A2 E J L N s F min
1 3/64" 31/64" 21/32" 1 5/8" 2 3/32" 2 15/16" 1/2" 21/32" 1 7/32"

HCF201-8
