1-9/16" Bearing HCF208-25 Square Flanged Housing Mounted Bearing - eccentric collar

1-9/16" Bearing HCF208-25 Square Flanged Housing Mounted Bearing - eccentric collar

$42.00 USD
$70.00 USD $42.00 USD
Oferta Agotado
HCF208-25 Four Bolt Flange Unit
Set Screw Type with Eccentric Collar
1 9/16" Inch Inner Diameter


HCF208-25 Four Bolt Flange Unit with eccentric collar, bearing is set screw type, inner diameter 1 9/16" inch

  • HCF208-25 Ball Bearing
  • Flange Mounted Bearing with eccentric Collar
  • Bolt Size: 1/2" inch
  • Shaft Diameter:1 9/16"inch
  • Basic Load (Cr): 32650 N
  • Basic Load (Cor): 16236 N
  • Bearing No: HC208-25
  • Housing No: F208
  • Quantity: 1 Bearing

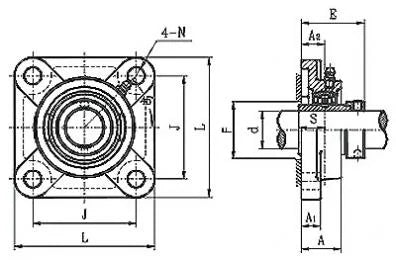

Dimensions
L J A2 A1 A E N S F min.
5 1/8" 4 1/32" 27/32" 19/32" 1 13/32" 2 7/32" 9/16" 27/32" 2 5/32"
