7003C P5 High precision Angular Contact Bearing ABEC-5 17x35x10mm

7003C P5 High precision Angular Contact Bearing ABEC-5 17x35x10mm

$39.99 USD
$82.99 USD $39.99 USD
Oferta Agotado
High Precision Ball Bearing
7003C P5 Angular Ball Bearing
15 degrees Contact Angle
ABEC-5
17mm x 35mm x 10mm


. .

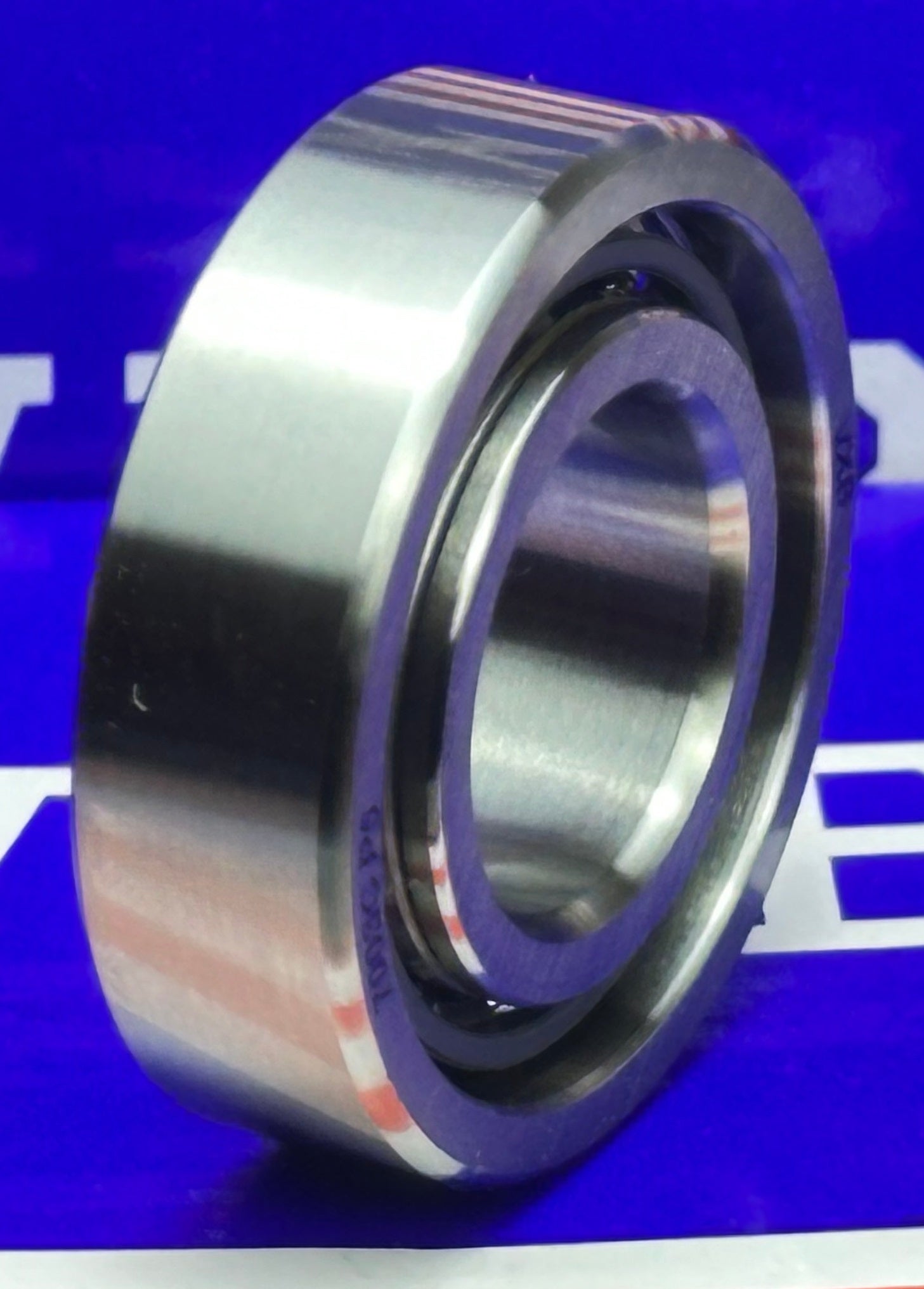

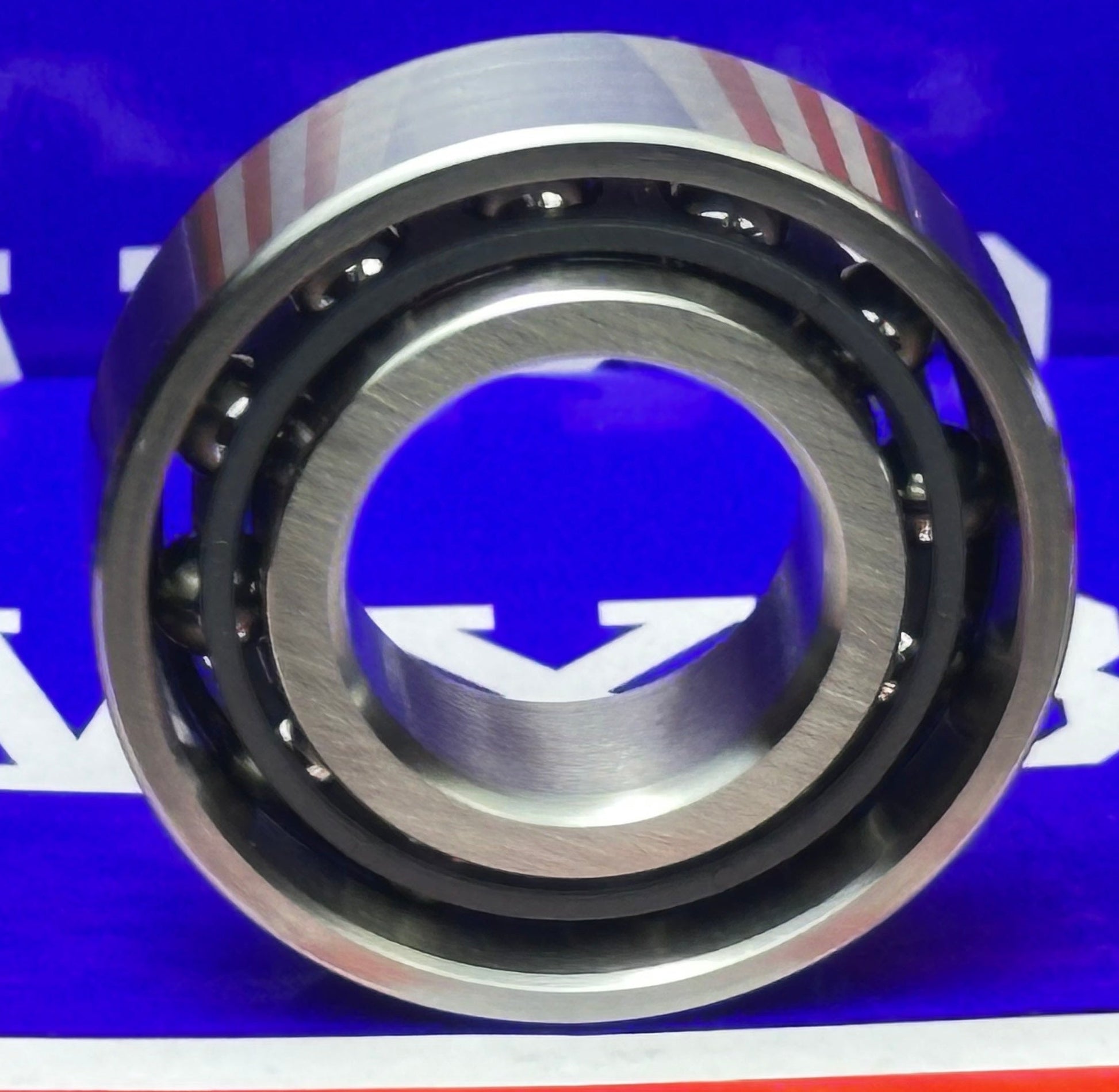

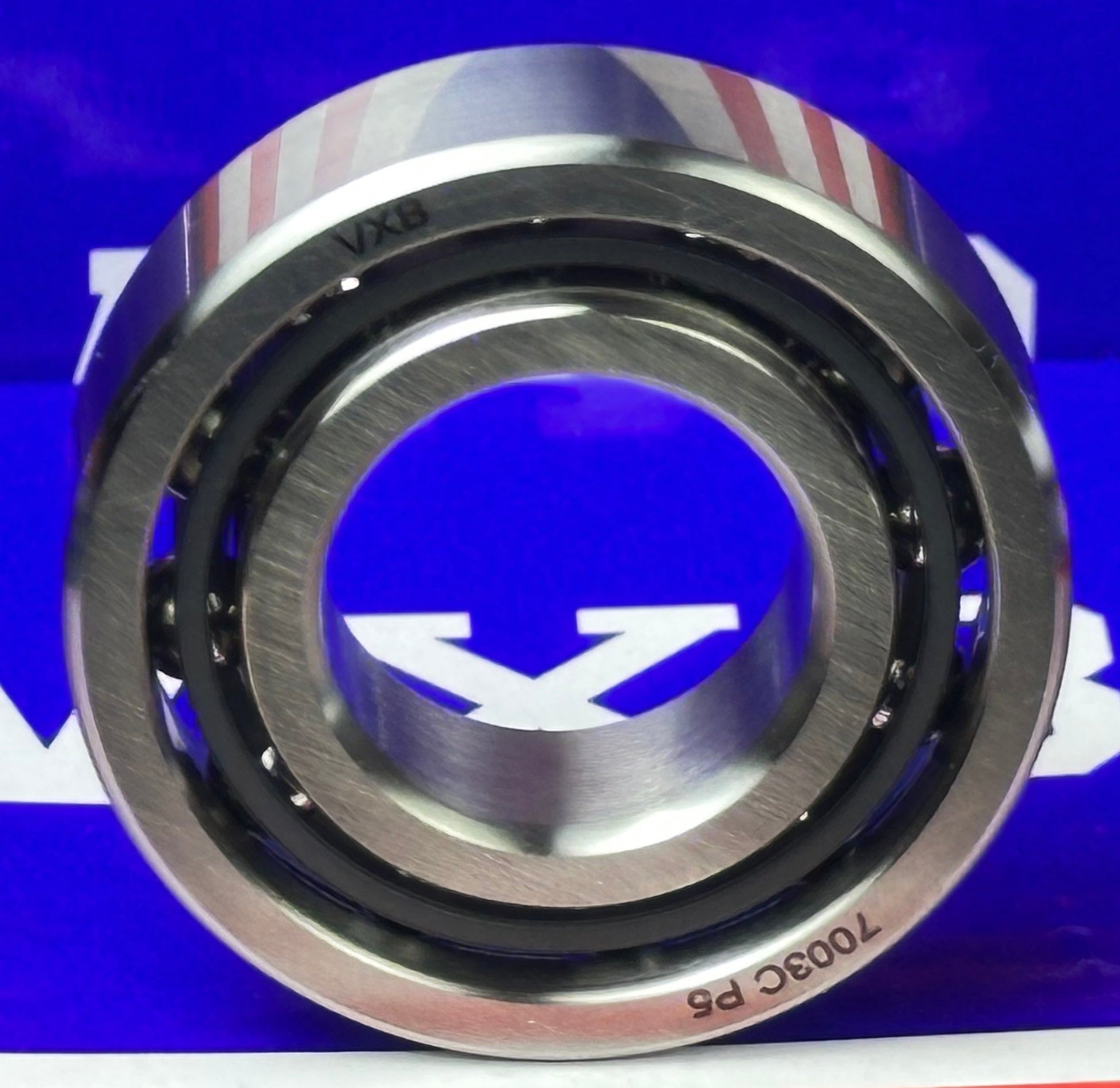

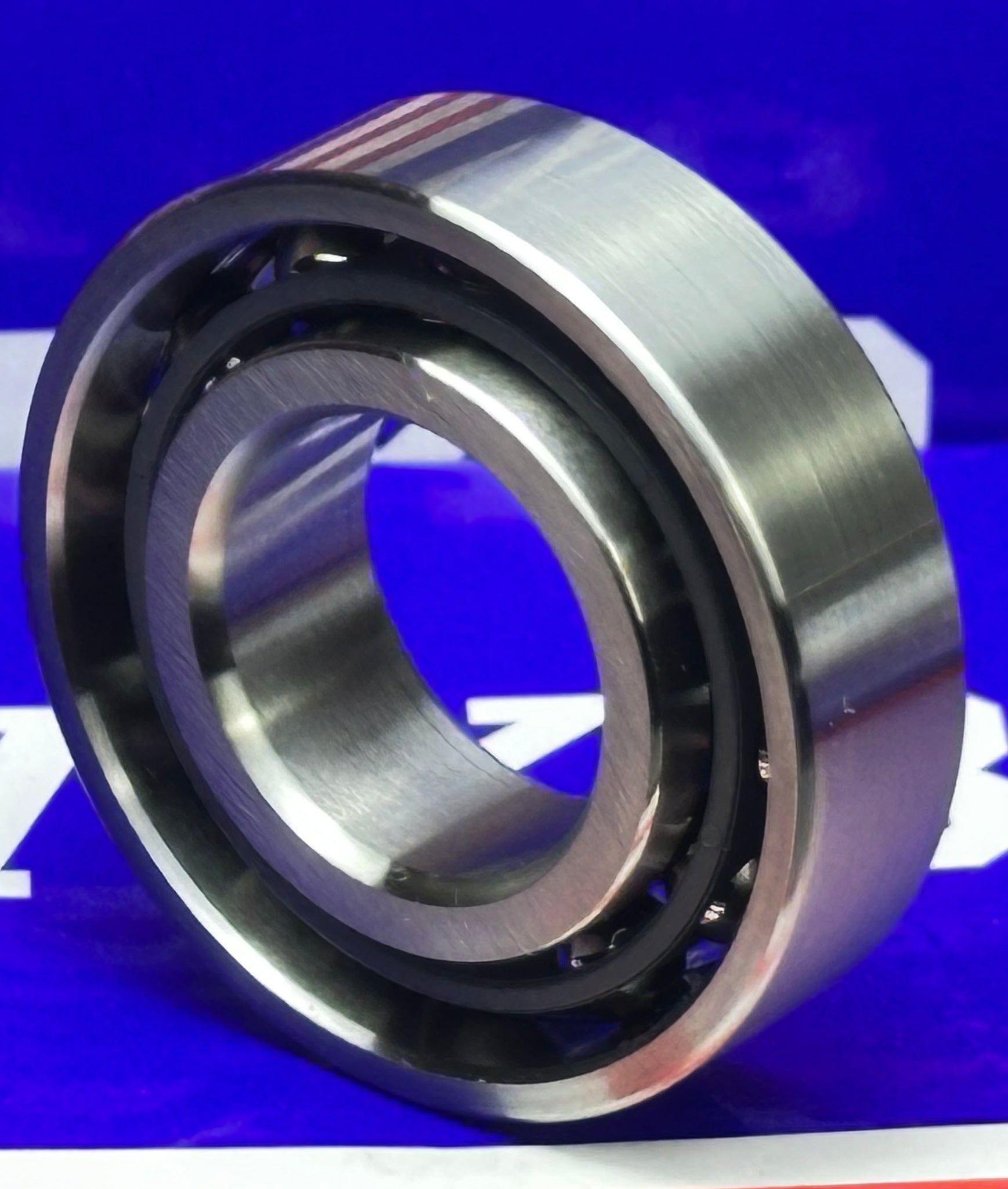

7003C P5 high precision Angular Ball Bearing with 15 degrees contact angle. Bearing is ABEC-5 (P5) quality. 7003C P5 inner diameter is 17mm, outer diameter is 35mm, and width is 10mm.

  • 7003C P5 Ball Bearing
  • High precision Angular Ball Bearing
  • Cage: PA66+ 30% NTE264B
  • Quality: ABEC-5 (P5 quality)
  • Dimensions: 17mm x 35mm x 10mm/Metric
  • ID (inner diameter)/Bore: 17mm
  • OD (outer diameter): 35mm
  • Width: 10mm
  • Size: 17 x 35 x 10 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 6,700 N
  • Static load rating Cor: 4,900 N
  • Limiting Speed:
    • Grease Lubrication: 45,000 RPM
    • Oil Lubrication: 67,000 RPM

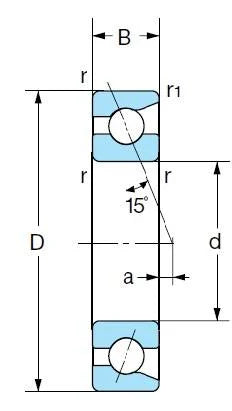

Dimensions
d D B
17mm 35mm 10mm


💡 What Does ABEC-5 Mean?

ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.

Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
