7210C P4 high precision Angular Contact Bearing 50x90x20 ABEC-7

7210C P4 high precision Angular Contact Bearing 50x90x20 ABEC-7

$199.99 USD
$469.99 USD $199.99 USD
Oferta Agotado
High Precision Ball Bearing
7210C P4 Angular Ball Bearing
15 degrees Contact Angle
ABEC-7
50mm x 90mm x 20mm

7210C P4 high precision Angular Ball Bearing with 15 degrees contact angle, bearing is ABEC-7 (P4) quality.

  • 7210C P4 Ball Bearing
  • High precision Angular Ball Bearing
  • Cage: PA66 + 30% NTE264B
  • Quality: ABEC-7 (P4 quality)
  • Dimensions: 50mm x 90mm x 20mm/Metric
  • ID (inner diameter)/Bore: 50mm
  • OD (outer diameter): 90mm
  • Width: 20mm
  • Size: 50 x 90 x 20 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 43,000 N
  • Static load rating Cor: 32,000 N
  • Limiting Speed:
    • Grease Lubrication: 11,000 RPM
    • Oil Lubrication: 16,000 RPM

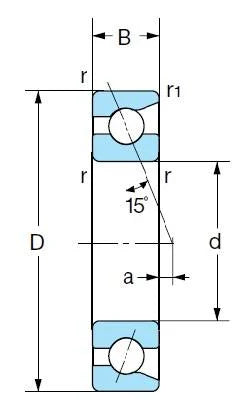

Dimensions
d D B r r1 a
50mm 90mm 20mm 1.1mm 0.6mm -1.9mm


💡 What Does ABEC-7 Mean?

ABEC-7 is a high-precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating extremely tight manufacturing tolerances. These bearings provide ultra-smooth, low-friction performance and are often used in high-speed, high-accuracy applications.

ABEC-7 bearings are commonly found in precision instruments, aerospace equipment, high-end electric motors, and demanding industrial machinery. They offer exceptional performance but are typically more expensive due to the level of accuracy involved.
