7213C P5 High precision Angular Contact Bearing 65x120x23 ABEC-5

7213C P5 High precision Angular Contact Bearing 65x120x23 ABEC-5

$199.99 USD
$249.99 USD $199.99 USD
Oferta Agotado
High Precision Ball Bearing
7213C P5 Angular Ball Bearing
15 degrees Contact Angle
ABEC-5
65mm x 120mm x 23mm


. .

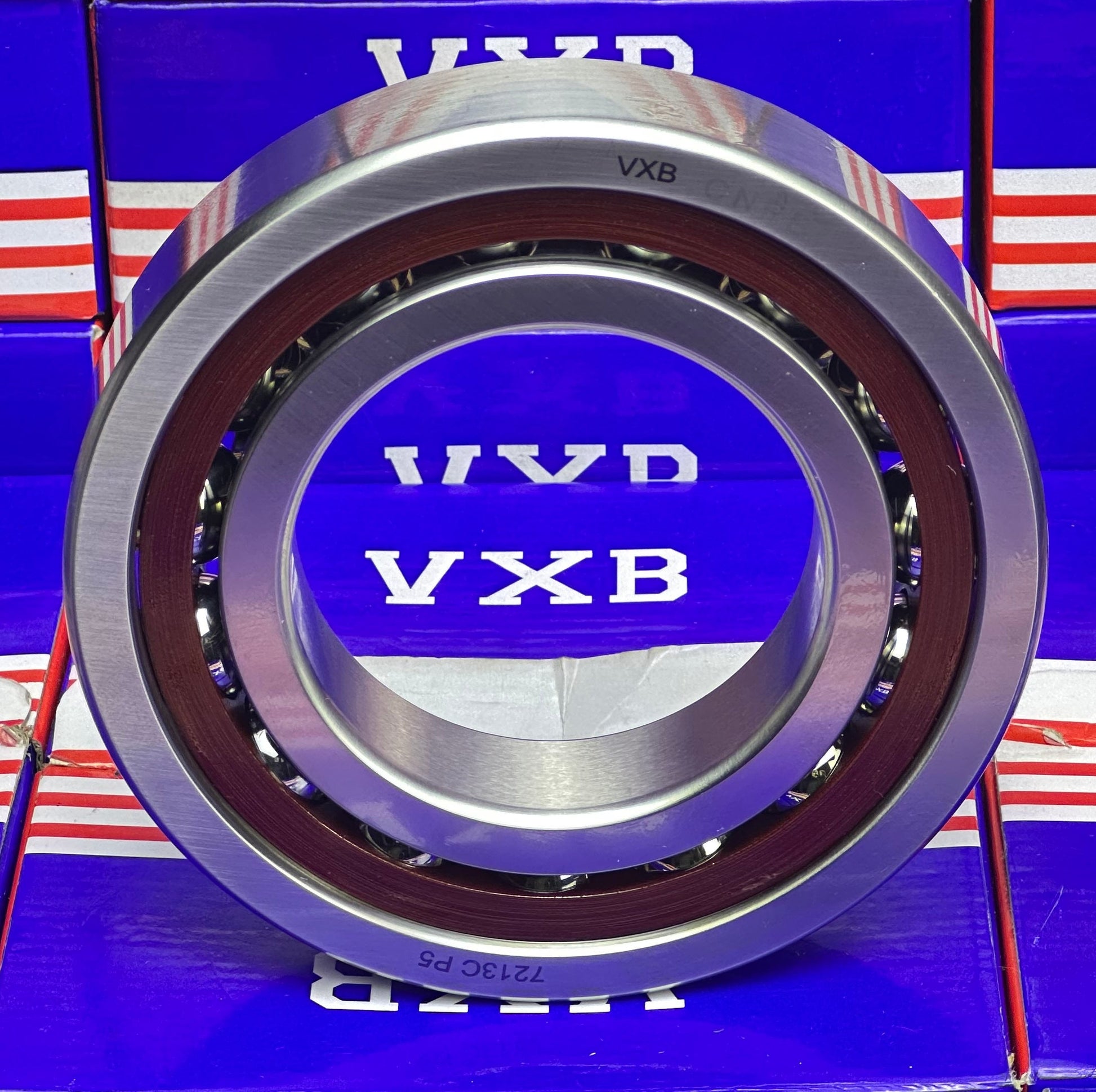

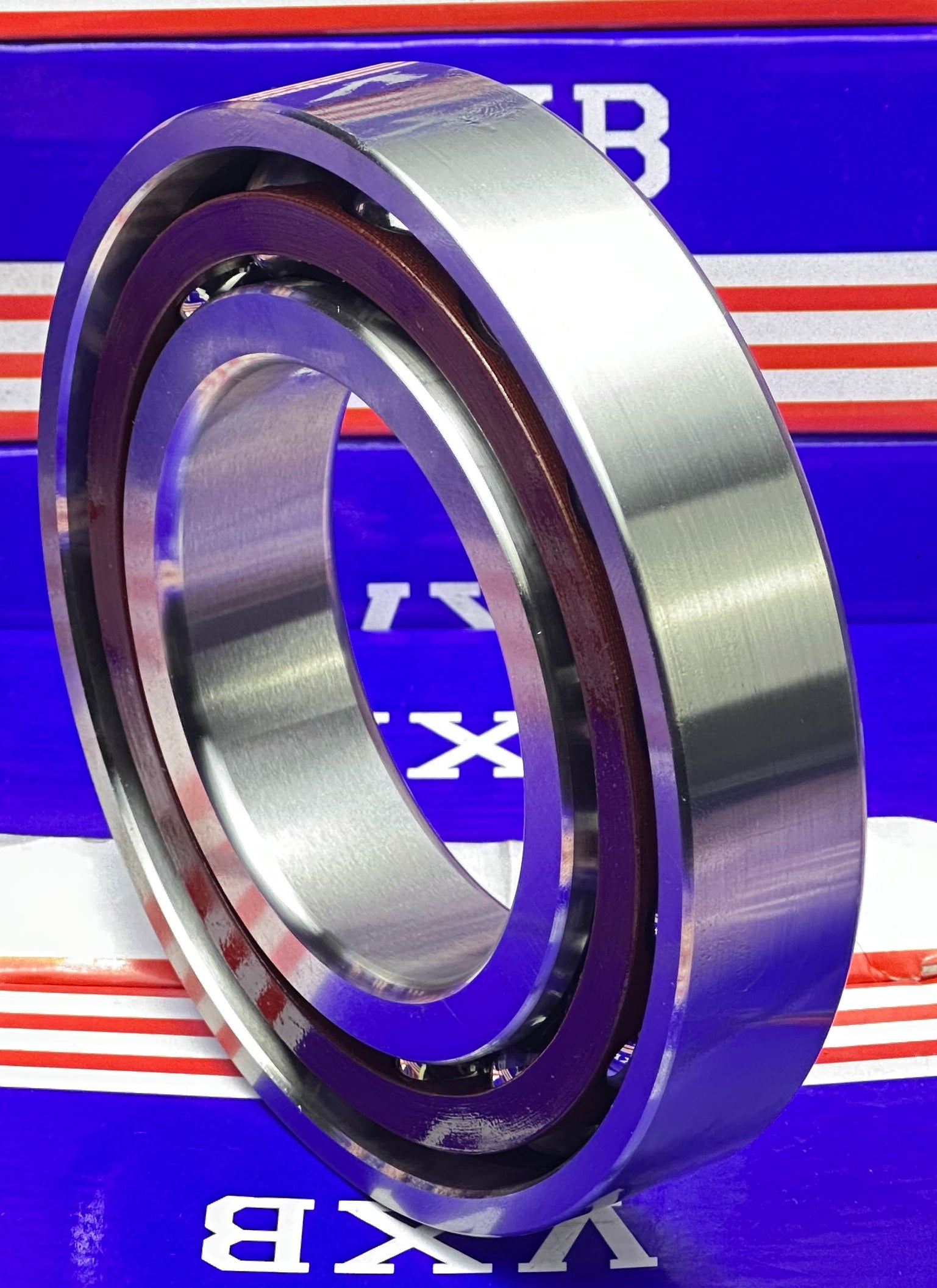

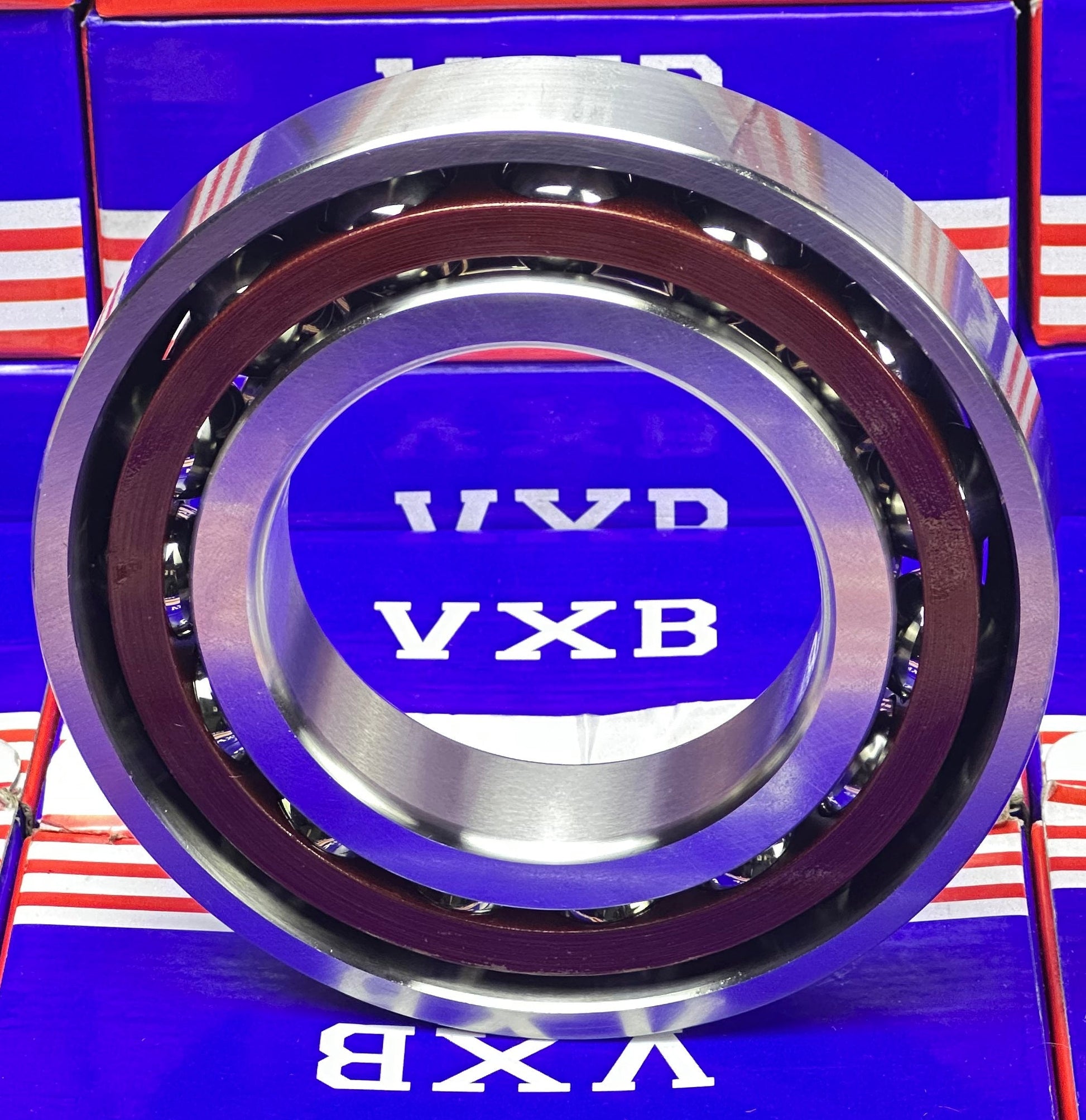

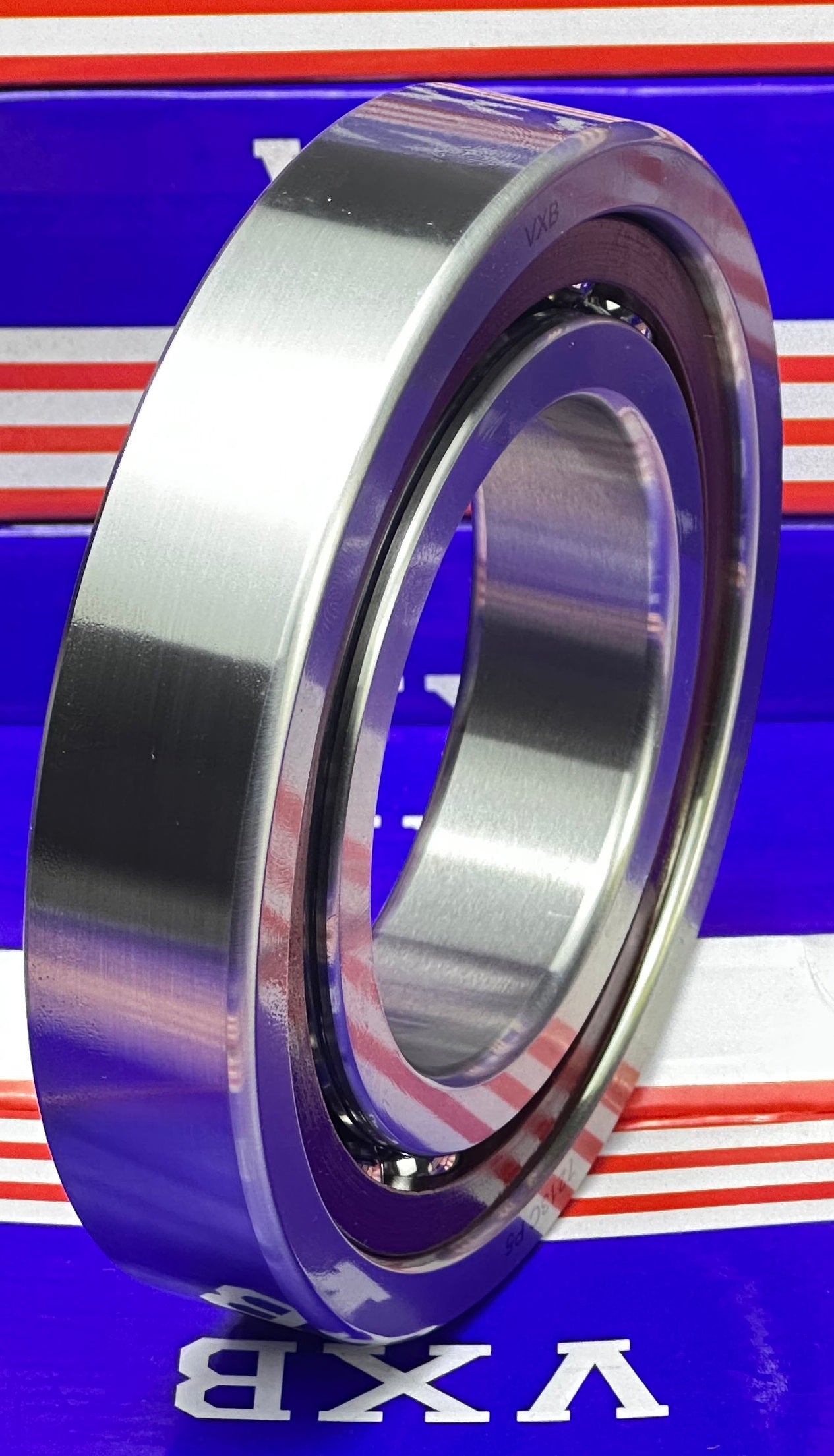

7213C P5 high precision Angular Ball Bearing with 15 degrees contact angle. Bearing is ABEC 5 (P5) quality .7213C P5 inner diameter is 65mm, outer diameter is 120mm, width is 23mm.

  • 7213C P5 Ball Bearing
  • High precision Angular Ball Bearing
  • Cage: PA66+ 30% NTE264B
  • Quality: ABEC-5 (P5 quality)
  • Dimensions: 65mm x 120mm x 23mm/Metric
  • ID (inner diameter)/Bore: 65mm
  • OD (outer diameter): 120mm
  • Width: 23mm
  • Size: 65 x 120 x 23 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 67,500 N
  • Static load rating Cor: 69,000 N
  • Limiting Speed:
    • Grease Lubrication: 11,000 RPM
    • Oil Lubrication: 18,000 RPM

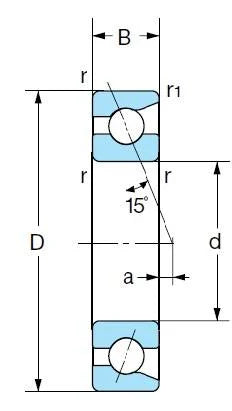

Dimensions
d D B
65mm 120mm 23mm


💡 What Does ABEC-5 Mean?

ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.

Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
