7220C P5 High Precision Angular Contact Bearing 100x180x34 ABEC-5

7220C P5 High Precision Angular Contact Bearing 100x180x34 ABEC-5

$199.99 USD
$571.99 USD $199.99 USD
Oferta Agotado
High Precision Ball Bearing
7220C P5 Angular Ball Bearing
15 Degree Contact Angle
ABEC-5
100mm x 180mm x 34mm


. .

7220C P5 High Precision Angular Ball Bearing with 15 degree contact angle. Bearing is ABEC-5 (P5) quality .7220C P5 inner diameter is 100mm, outer diameter is 180mm, width is 34mm.

  • 7220C P5 Ball Bearing
  • High Precision Angular Ball Bearing
  • Cage: PA66+ 30% NTE264B
  • Quality: ABEC-5 (P5 quality)
  • Dimensions: 100mm x 180mm x 34mm/Metric
  • ID (inner diameter)/Bore: 100mm
  • OD (outer diameter): 180mm
  • Width: 34mm
  • Size: 100 x 180 x 34 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 146,200 N
  • Static load rating Cor: 165,900 N
  • Limiting Speed:
    • Grease Lubrication: 7,000 RPM
    • Oil Lubrication: 11,000 RPM

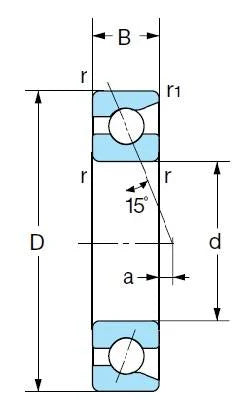

Dimensions
d D B
100mm 180mm 34mm


💡 What Does ABEC-5 Mean?

ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.

Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
