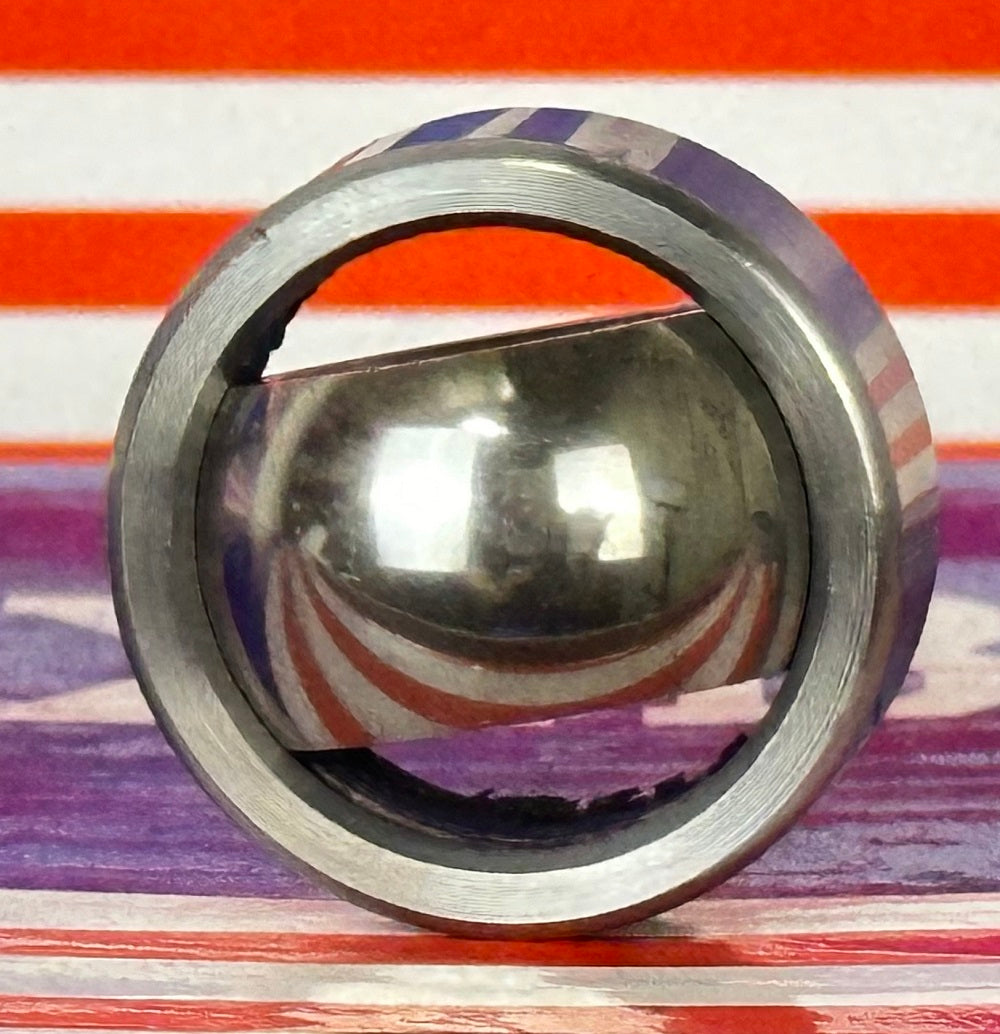

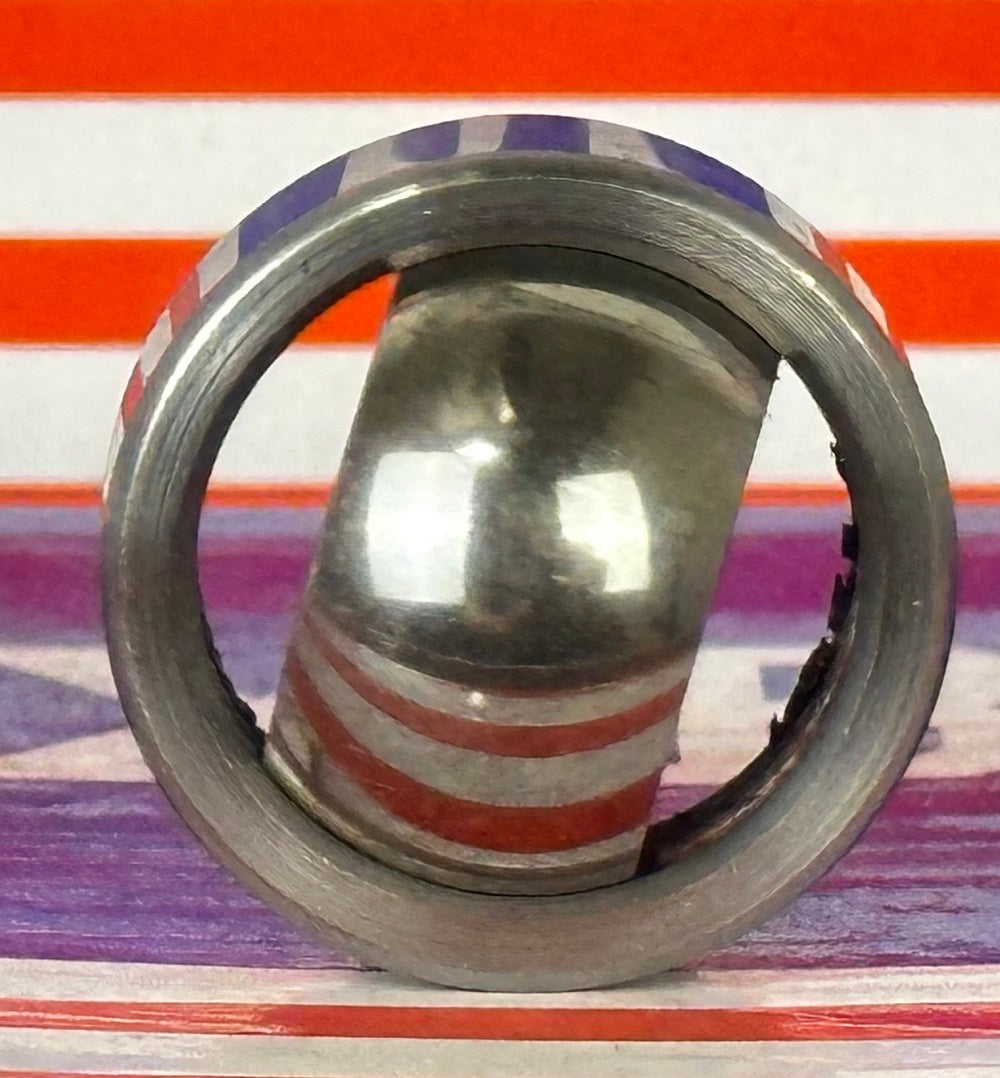

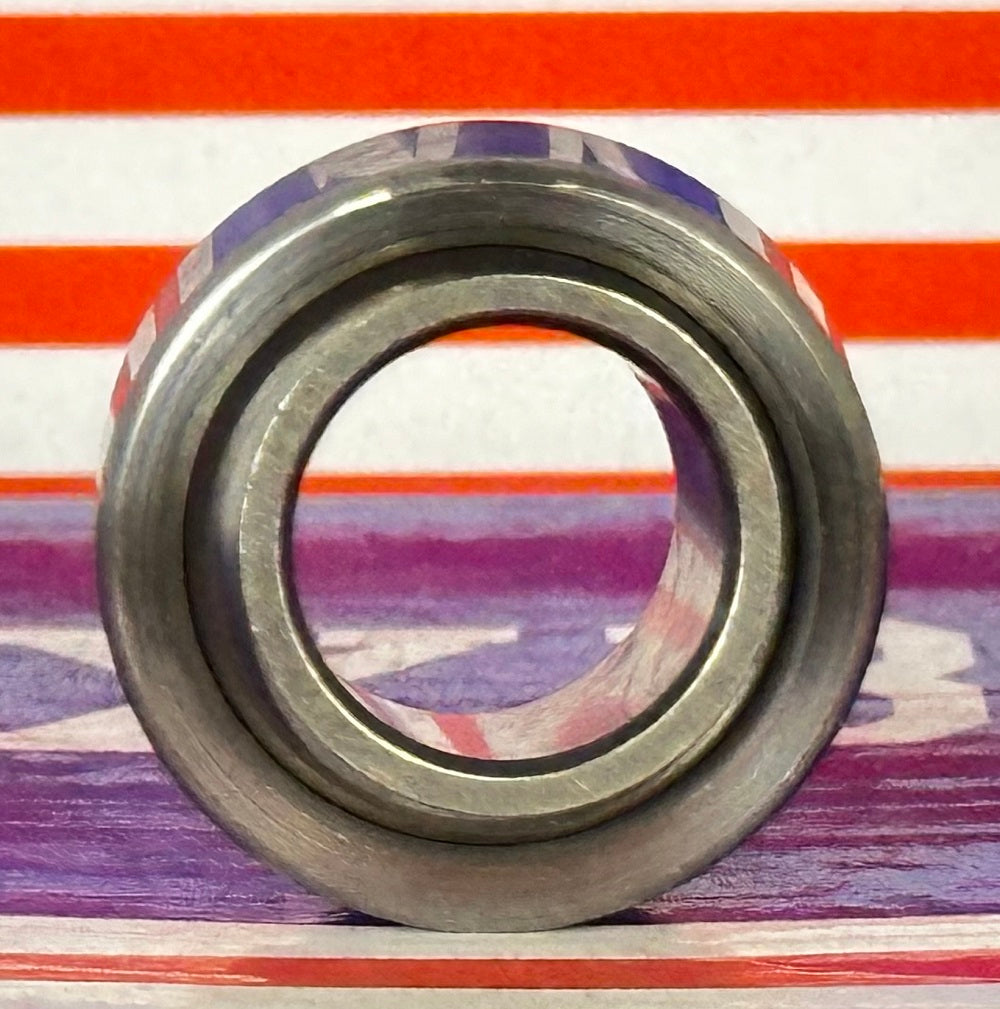

GE12C is a PTFE Maintenance-free radial spherical plain bearing ,Open (without seals), self-lubricating sliding surfaces have to be externally protected from contaminatiom, the inner race can swivel like a ball joint, measures an inner diameter of 12mm, outer diameter is 22mm and the width is 10mm.
- GE12C Bearing
- Type:Free Radial Spherical plain Bearing
- Material: Chrome Steel
- Closures: Open
- inner Diameter (ID): 12mm
- outer diameter (OD): 22mm
- Width: 10mm
- Size: 12 x 22 x 10mm
- Quantity: 1 Bearing
- Basic Dynamic Load Rating: 11.4 kN
- Basic Static Load Rating: 28.5 kN

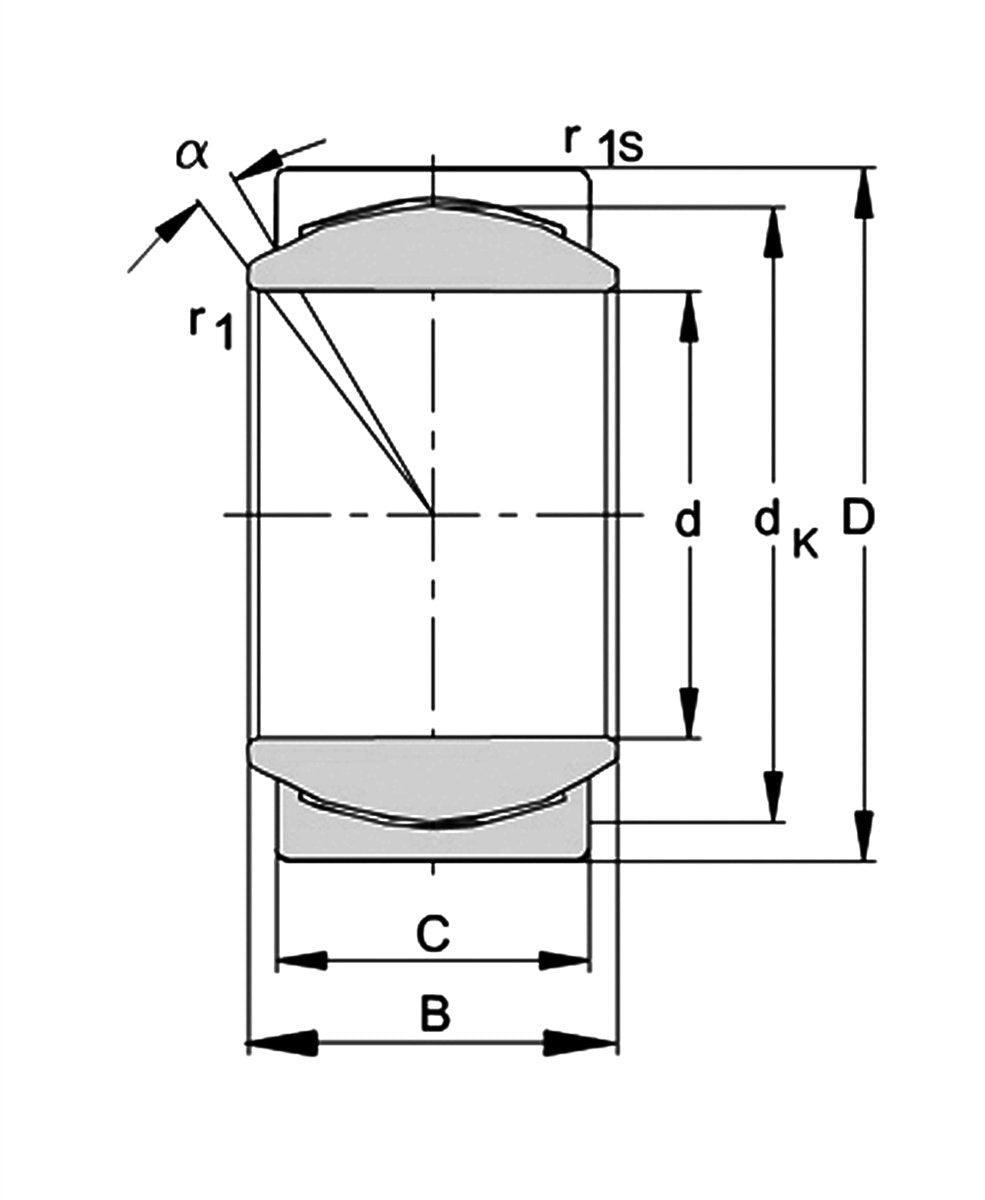

| Dimensions |
|---|
| d |
D |
B |
C |
| 12mm |
22mm |
10mm |
7mm |
|
