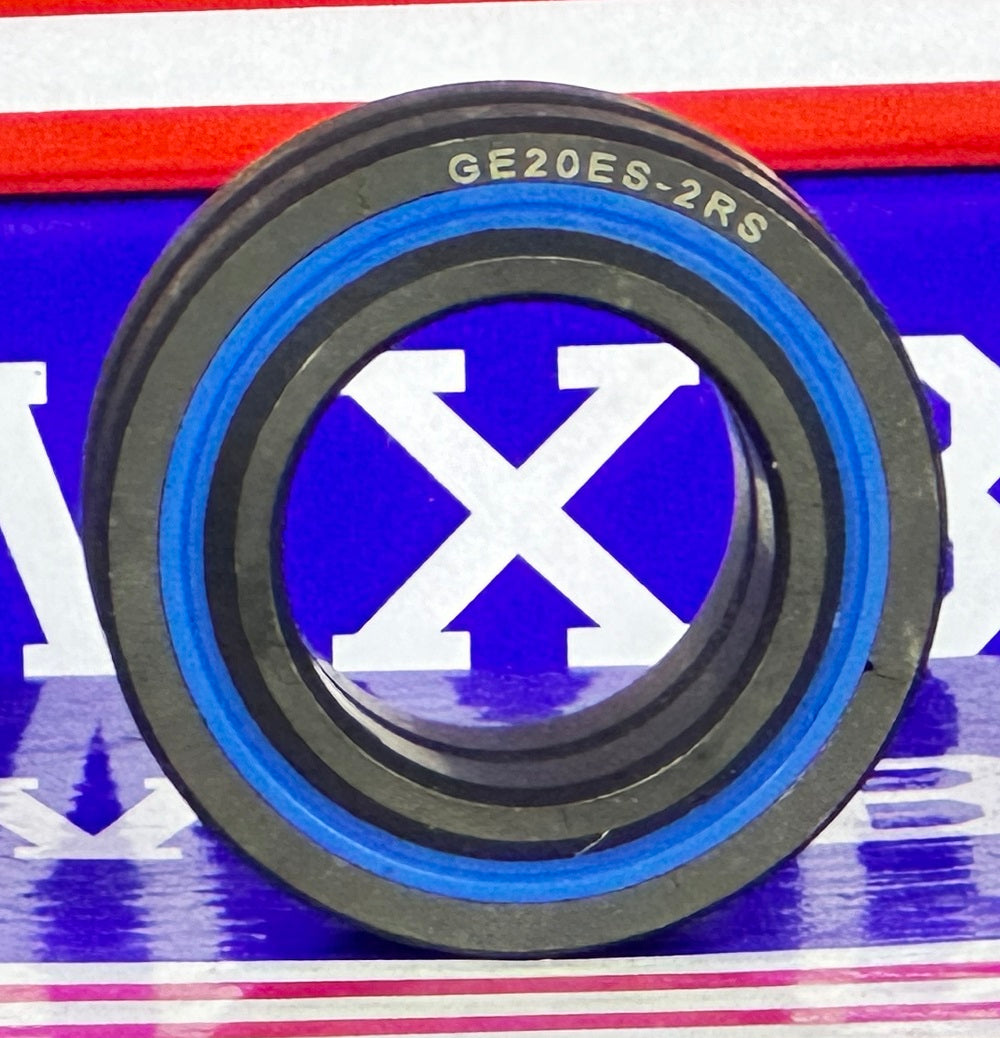

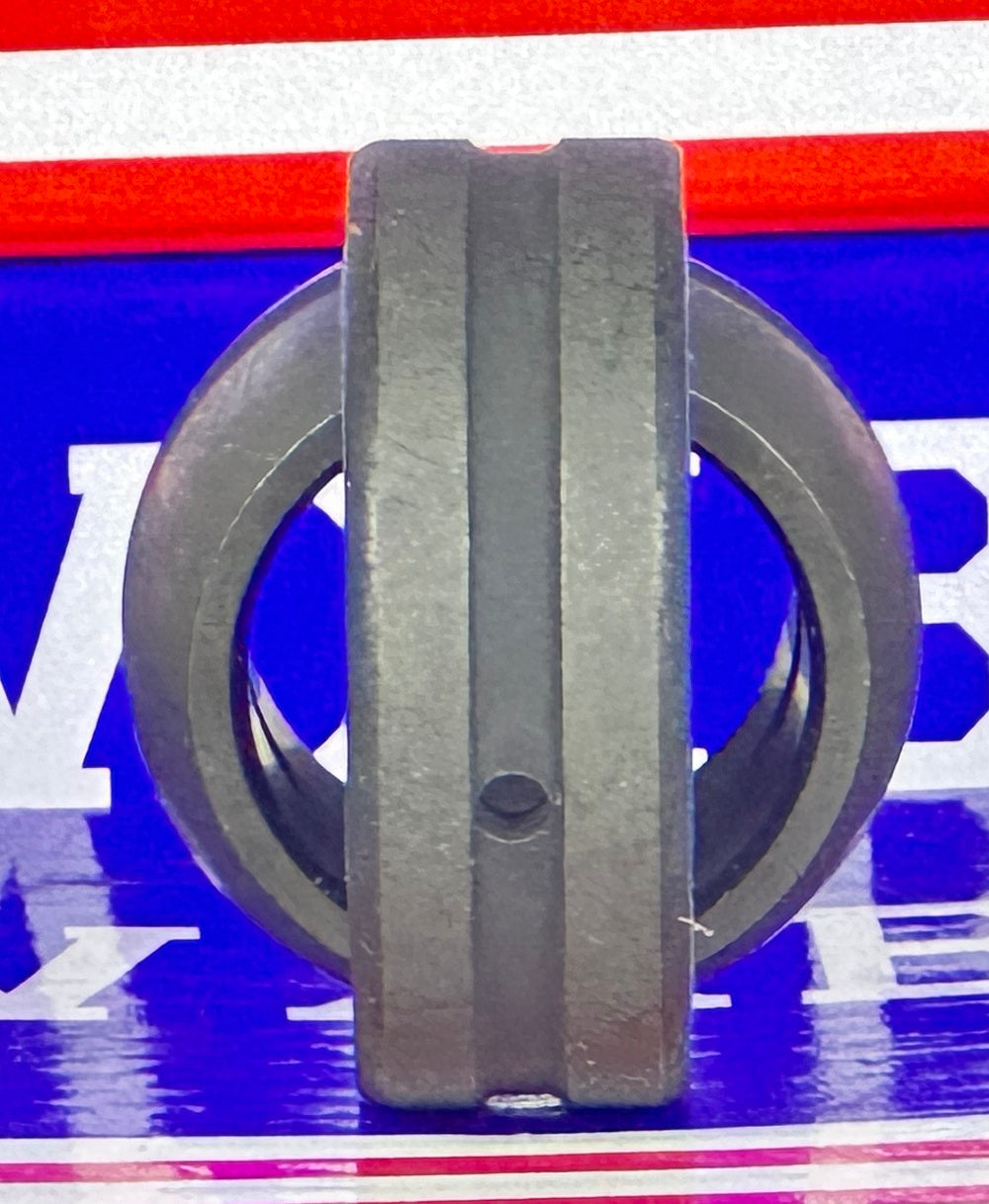

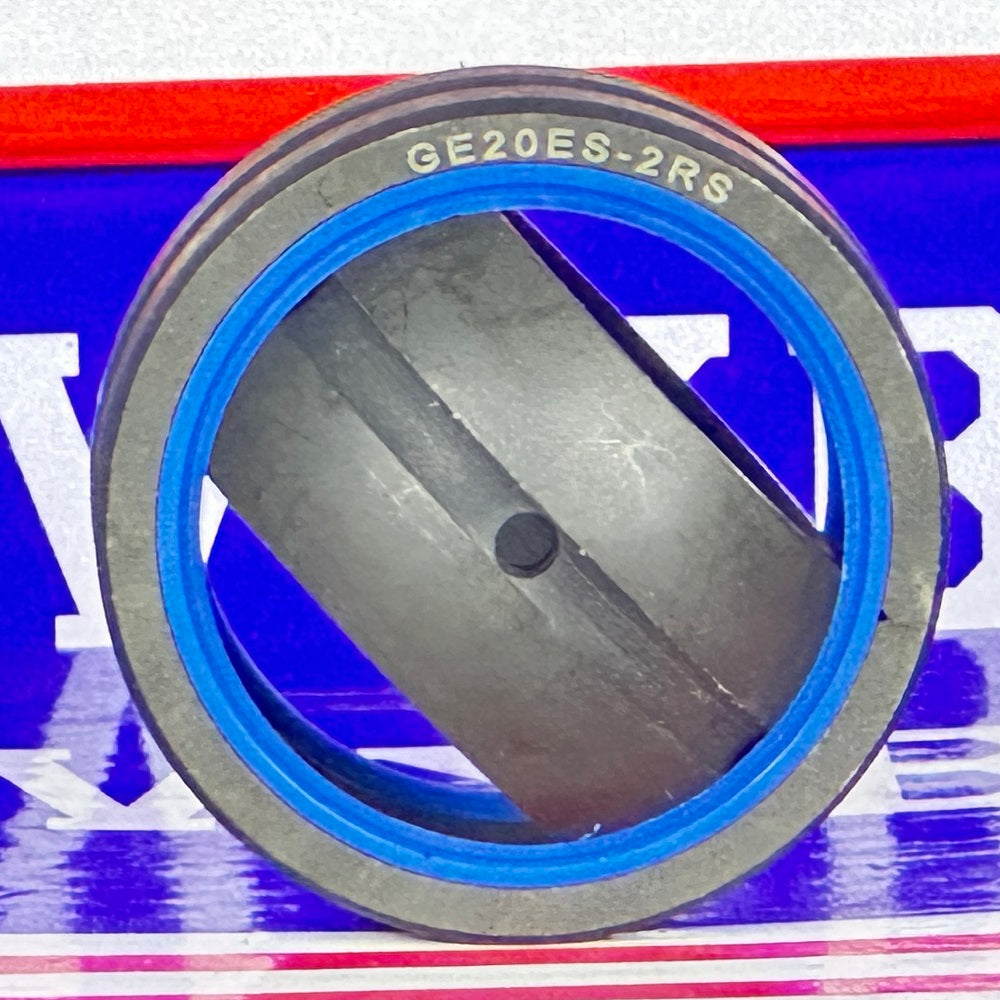

GE20ES-2RS Double Sealed Spherical Plain Bearing, the inner race can swivel like a ball joint, measures an inner diameter of 20mm, outer diameter is 35mm and the width is 16mm, a standard bearing size commonly used in a variety of industrial and commercial applications, bearing is equipped with two rubber seals to shield against dust and contaminants.
- GE20ES-2RS Bearing
- Double Sealed Spherical Bushings Plain Bearing
- Material: Carbon Steel
- Closures: Two Rubber Seals
- inner Diameter (ID): 20mm
- outer diameter (OD): 35mm
- Width: 16mm
- Size: 20 x 35 x 16 mm
- Quantity: 1 Bearing
- Basic Dynamic Load Rating: 3,480 KGF
- Basic Static Load Rating: 20,900 KGF
- GE20ES-2RS=GE20D0-2RS
|

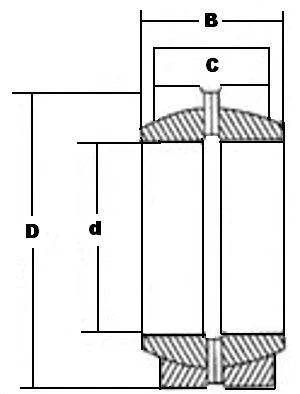

Dimensions
|
|---|
| d |
D |
B |
C |
| 20mm |
35mm |
16mm |
12mm |
|
