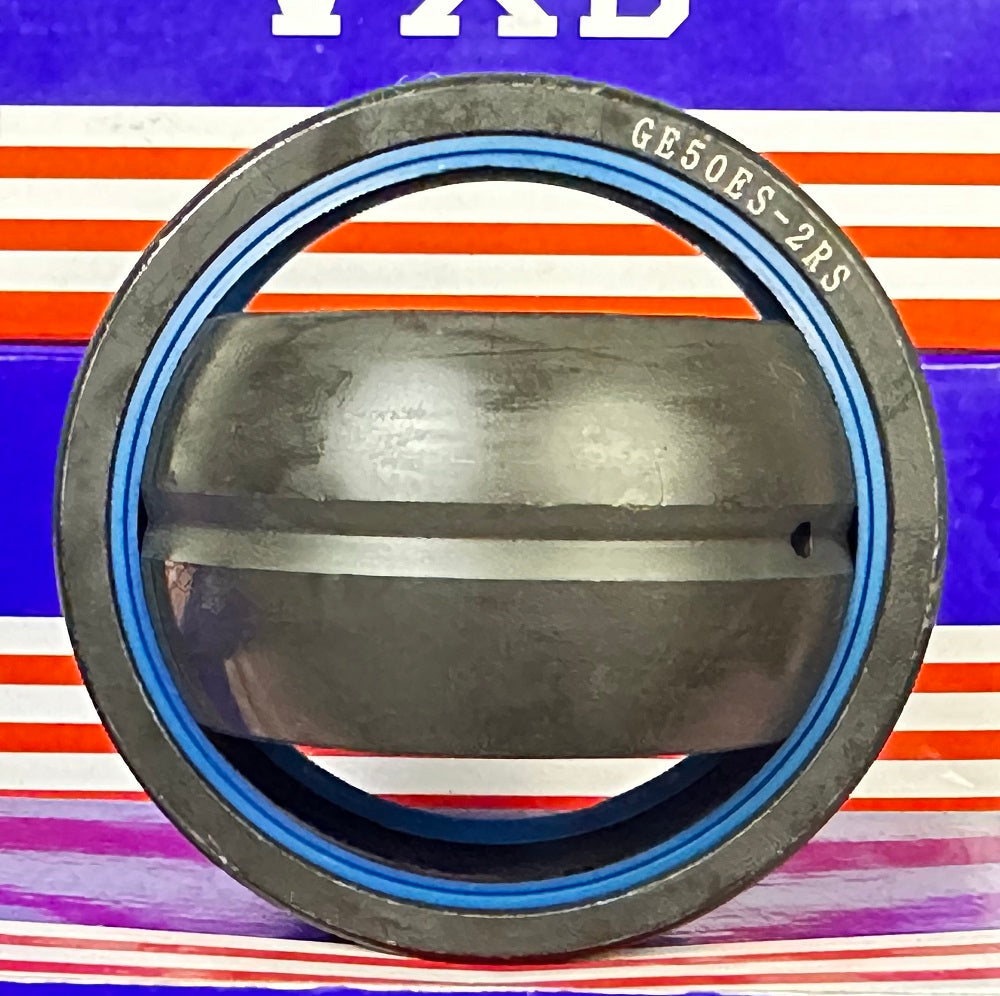

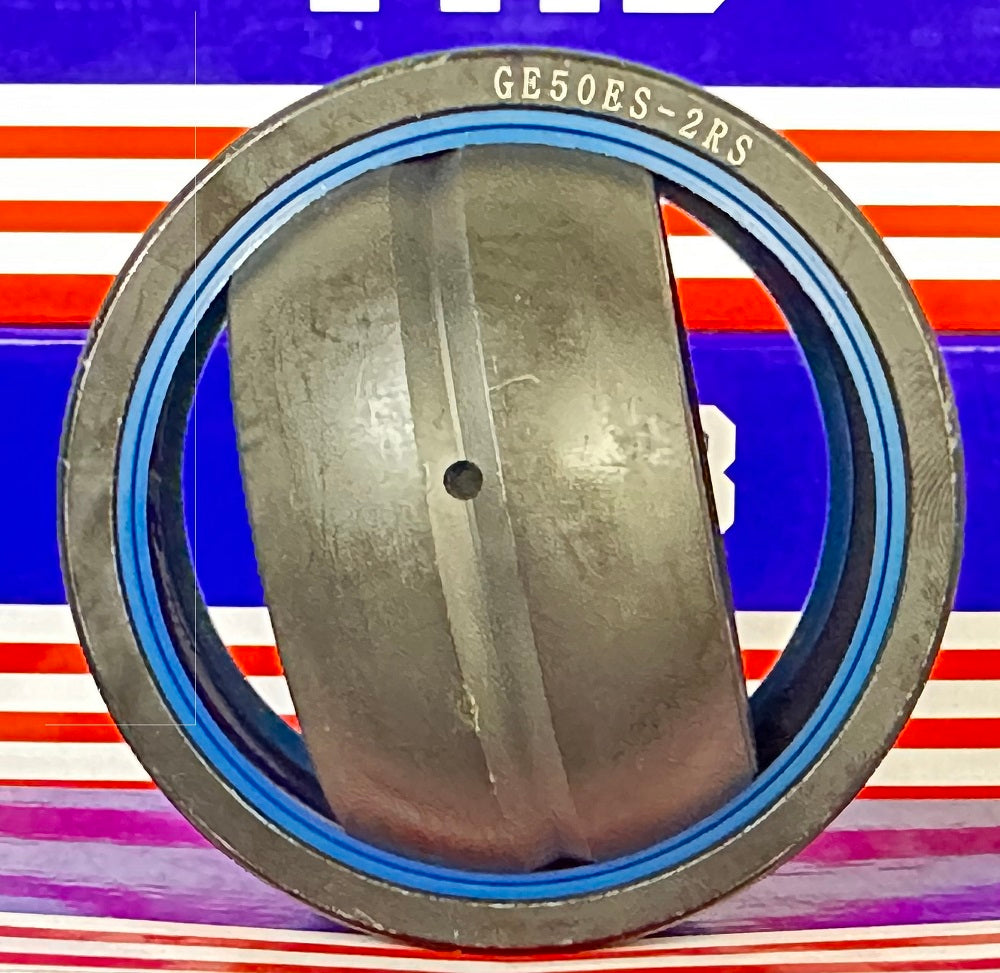

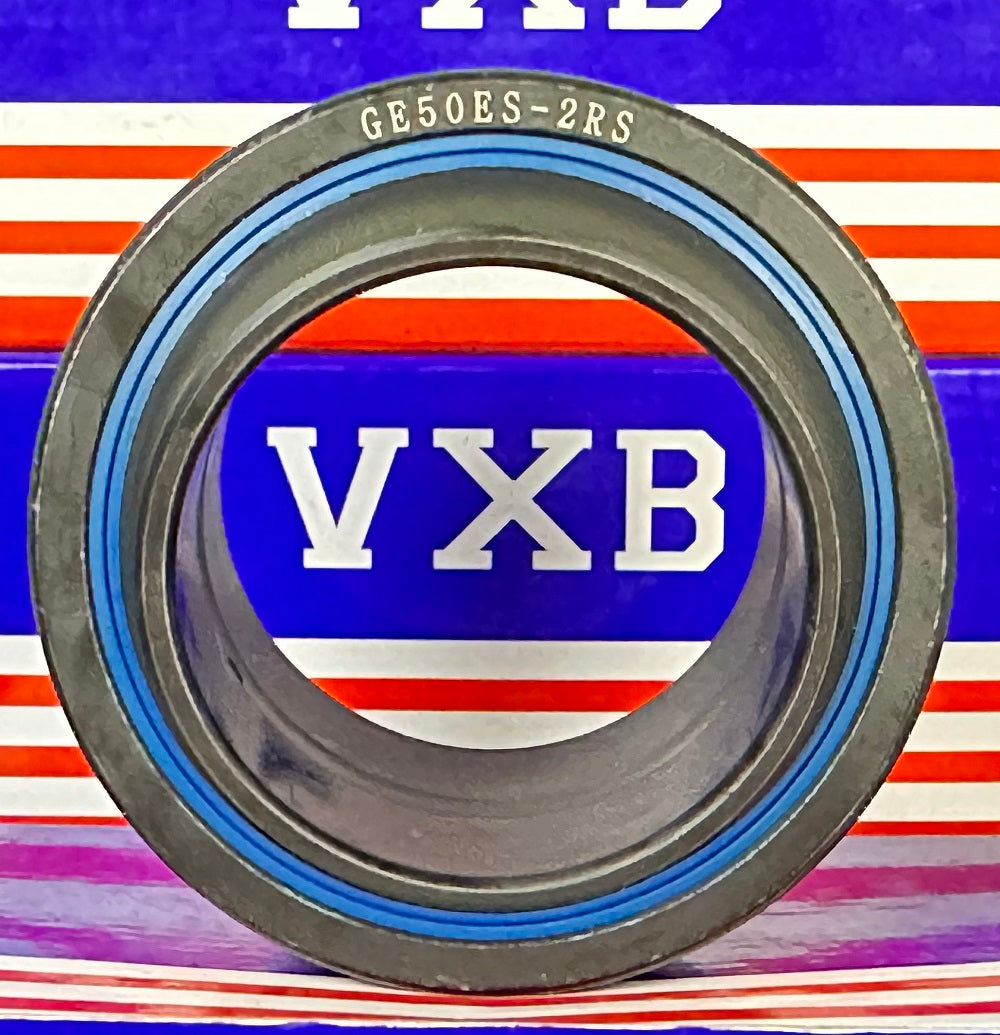

GE50ES-2RS Double Sealed Spherical Plain Bearing, the inner race can swivel like a ball joint, measures an inner diameter of 50mm, outer diameter is 75mm and the width is 35mm, a standard bearing size commonly used in a variety of industrial and commercial applications, bearing is equipped with two rubber seals to shield against dust and contaminants.
- GE50ES-2RS Bearing
- Double Sealed Spherical Bushings Plain Bearing
- Material: Carbon Steel
- Closures: Two Rubber Seals
- inner Diameter (ID): 50mm
- outer diameter (OD): 75mm
- Width: 35mm
- Size: 50 x 75 x 35 mm
- Quantity: 1 Bearing
- Basic Dynamic Load Rating: 18,500 KGF
- Basic Static Load Rating: 111,000 KGF
- GE50ES-2RS=GE50D0-2RS
|

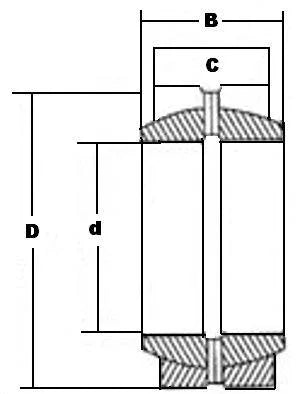

Dimensions
|
|---|
| d |
D |
B |
C |
| 50mm |
75mm |
35mm |
28mm |
|
