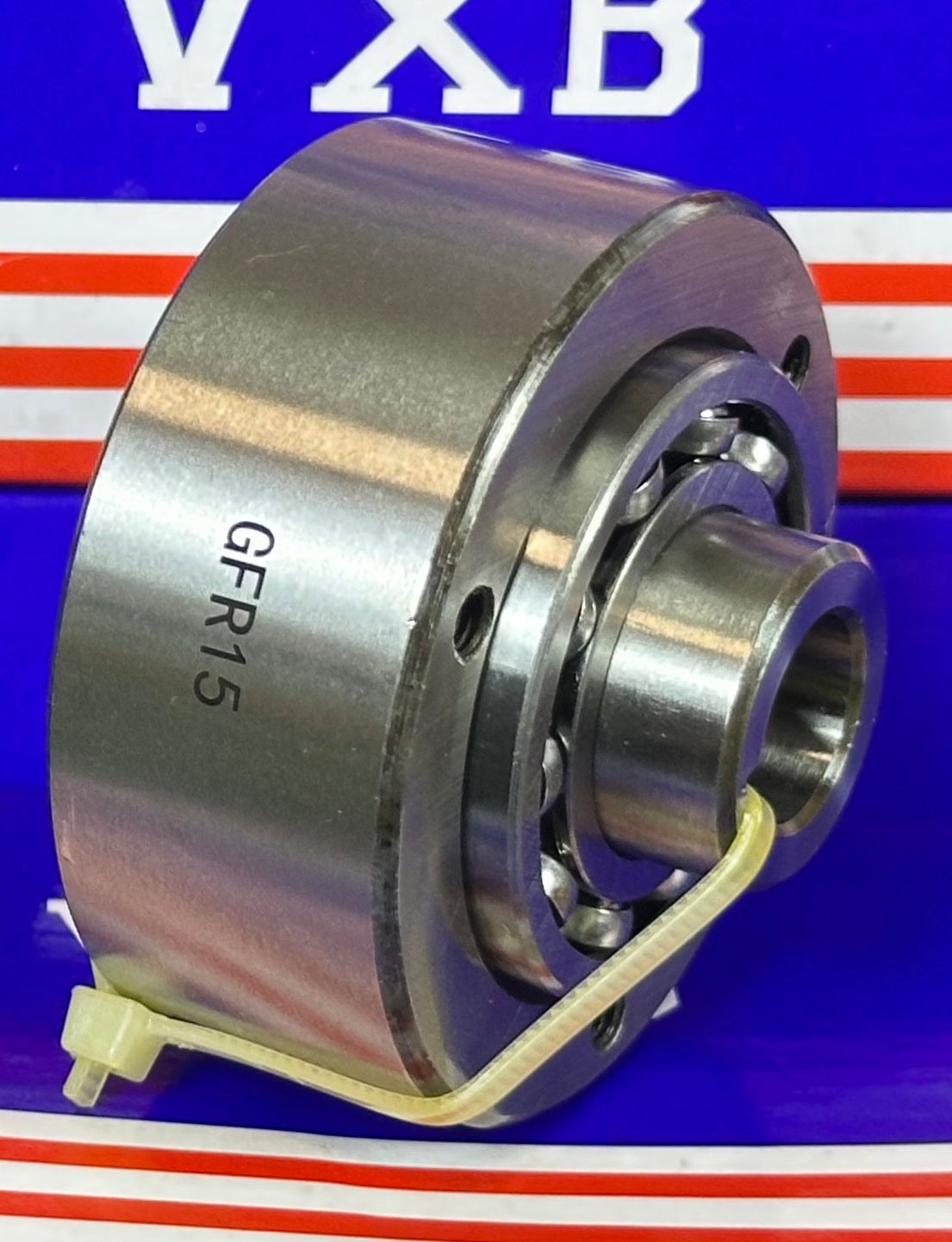

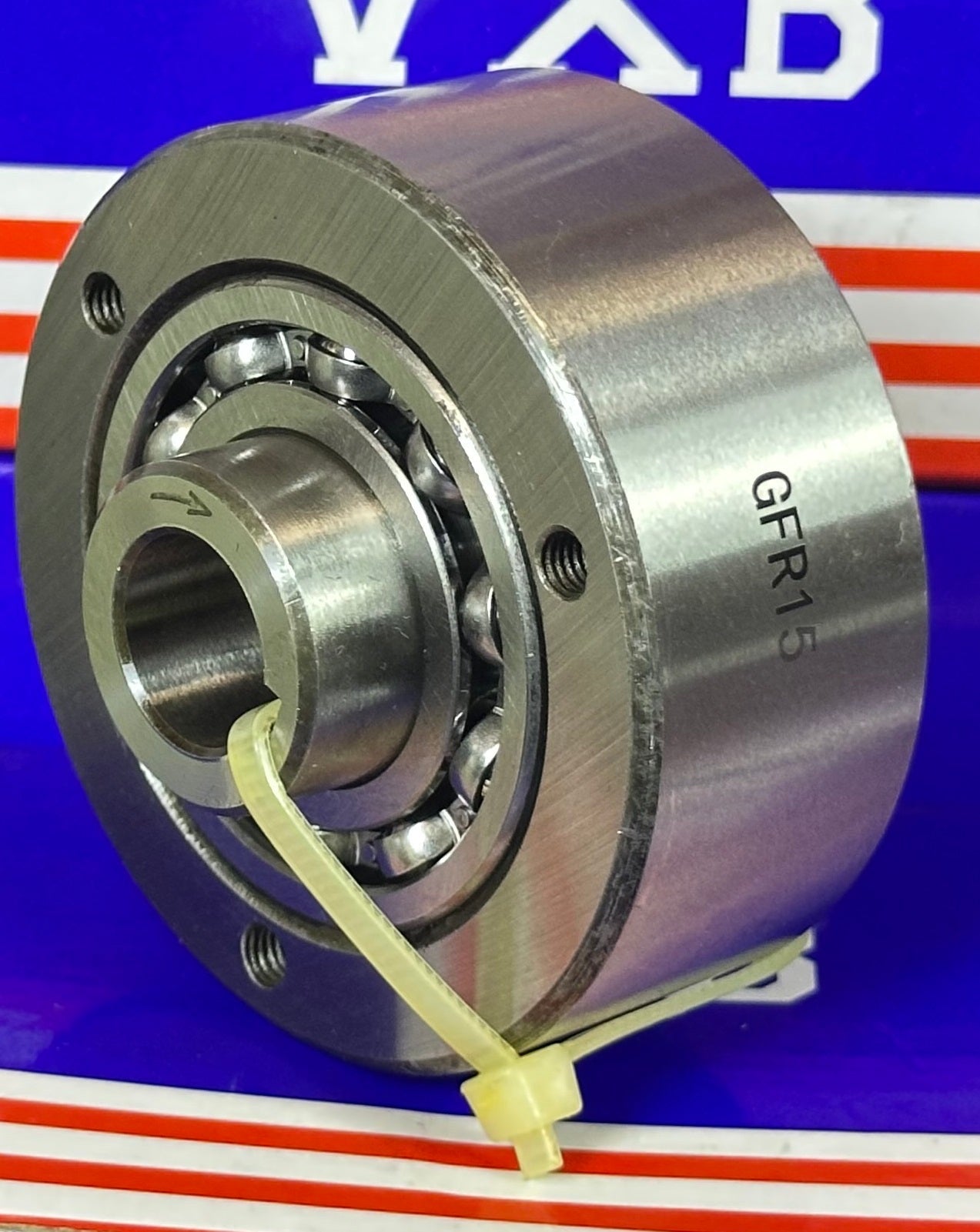

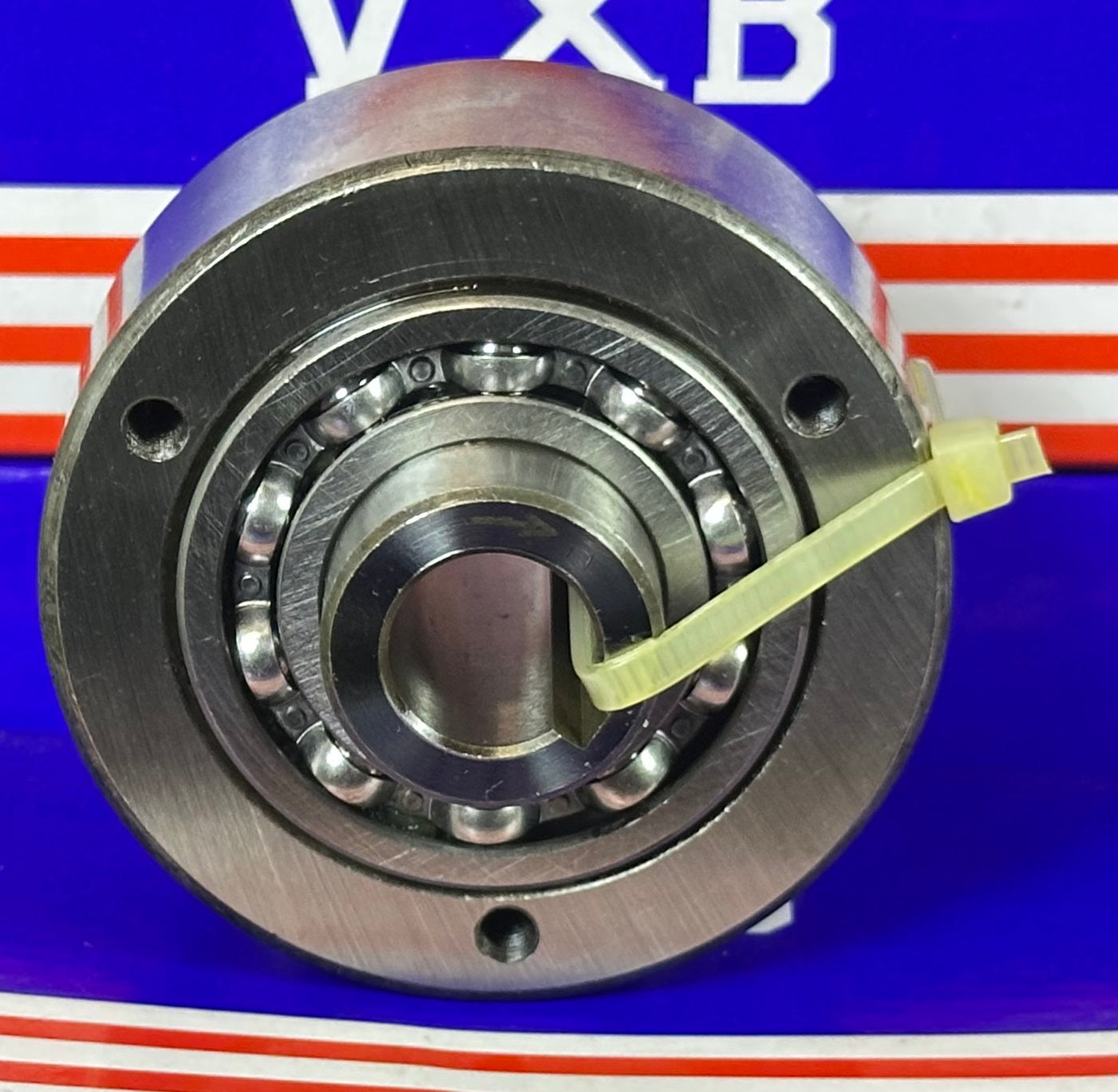

GFR15 is a one-way clutch used for overrunning, indexing, and backstopping. it is used in any applications that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
- GFR15
- One Way Clutch
- Applications: Overrunning, Indexing, Backstopping
- non-bearing supported, External Bearing Support Required
- Dimensions: 15x68x52mm (Metric)
- Inner Diameter: 15mm
- Outer Diameter: 68mm
- Width: 52mm
- Quantity: One Clutch

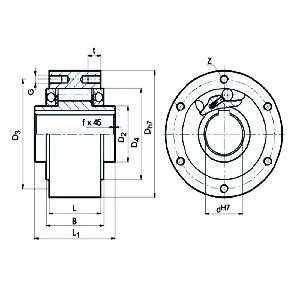

| Dimension (mm) |
| dH7 |
T 1) |
n 2) |
n 3) |
Dh7 |
D2 |
D4 |
D3 |
G |
t |
z |
L |
L1 |
B |
t1 |
| 15 |
125 |
3600 |
6500 |
68 |
25 |
47 |
56 |
M5 |
8 |
3 |
52 |
28 |
32 |
3 |
|
