GMT25WUU NB 25mm Two Side Cut Double Wide Flange Motion Linear Bearing
GMT25WUU NB 25mm Two Side Cut Double Wide Flange Motion Linear Bearing
Precio habitual
$134.99 USD
Precio habitual
$207.00 USD
Precio de oferta
$134.99 USD
Precio unitario
/
por
No se pudo cargar la disponibilidad de retiro
| GMT25WUU NB Two Side Cut Double Wide Flange:Slide Unit Made in Japan:NB Linear Systems |

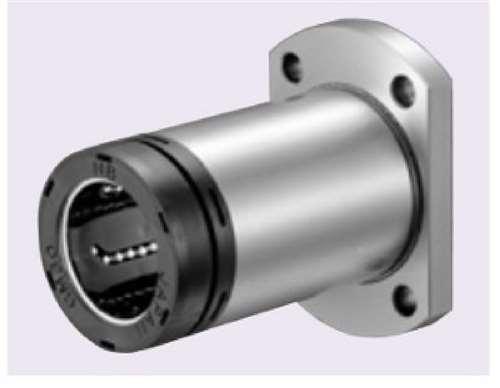

GMT25WUU NB Two Side Cut Double Wide Flange Bearing, The inner diameter is 25mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

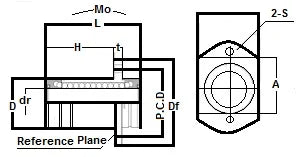

| Major Dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | H | Df | t | W | A | F | S | ||
| mm | tolerance | mm | tolerance | ||||||||
| 25 | 0-12 | 40 | 0-19 | 91 | 70.5 | 62 | 5 | 46 | 40 | 32 | 5.5 |
