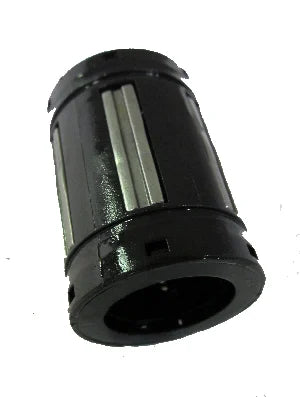

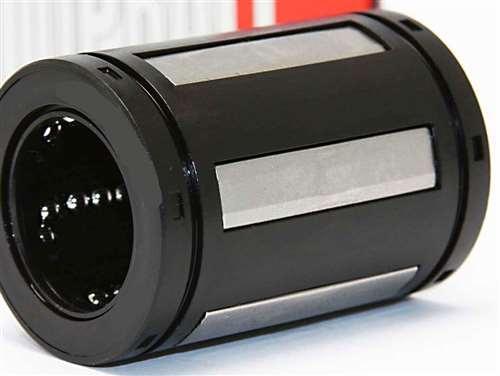

LMES10 Self Aligning Ball Bushings 10mm Linear Motion

LMES10 10 Bore High Load Standard type TopBall metric type linear motion ball bushings/bearing inner diameter(bore) is 10 mm dimensions with built-in seals. the Topball slide bush is a high performance bushing with three times the load capacity capable of providing up to 27 times normal travel life of a conventional slide bushing high accuracy grade linear bushings series mainly used in the USA.

• LMES10 Ball Bearing
• Linear Motion Ball Bushing
• Ball circuit: 5
• Size: 10 x 19 x 29 mm
• Bearing Inner Diameter: 10 mm
• Bearing Outer Diameter: 19 mm
• Bearing Length: 29 mm
• Dynamic Load Rating: 750 N
• Static Load Rating: 935 N
• Quantity: 1 Bearing
