NAS5007UUNR Sheave Bearing NAS5007UUNR is a double row full Complement cylindrical roller bearing. NAS5007UUNR has the highest dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, NAS5007UUNR lubricates with a lithium soap-based grease containing an EP additive, NAS5007UUNR lubricates through lubrication hole & grooves only in inner ring.
- NAS5007UUNR Sheave Bearing
- Double Row Full Complement Cylindrical Roller Sheave Bearing
- Dimensions: 35mmx55mmx34mm/Metric
- ID (inner diameter)/Bore: 35mm
- OD (outer diameter): 55mm
- Width: 34mm
- Size: 35 x 55 x 34mm
- Snap Ring: WRE 55(not included)
- Quantity: 1 Bearing
- Dynamic load rating Cr: 99,500 N
- Static load rating Cor: 158,000 N
- Limiting Speed:
- Grease Lubrication: 2,000 RPM
- Operating temperature: Suitable for -30 to +120 Celsius
- Application: Highly suitable in rope sheave

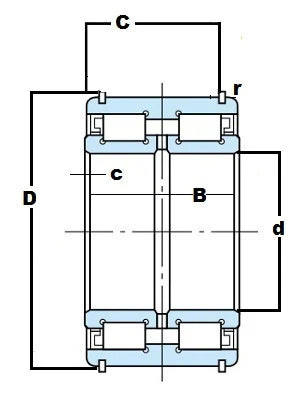

Dimensions (mm)
||||||
|
| d |
D |
B |
C |
r(min) |
c |
| 35 |
55 |
34 |
39 |
0.6 |
1.5 |
|
