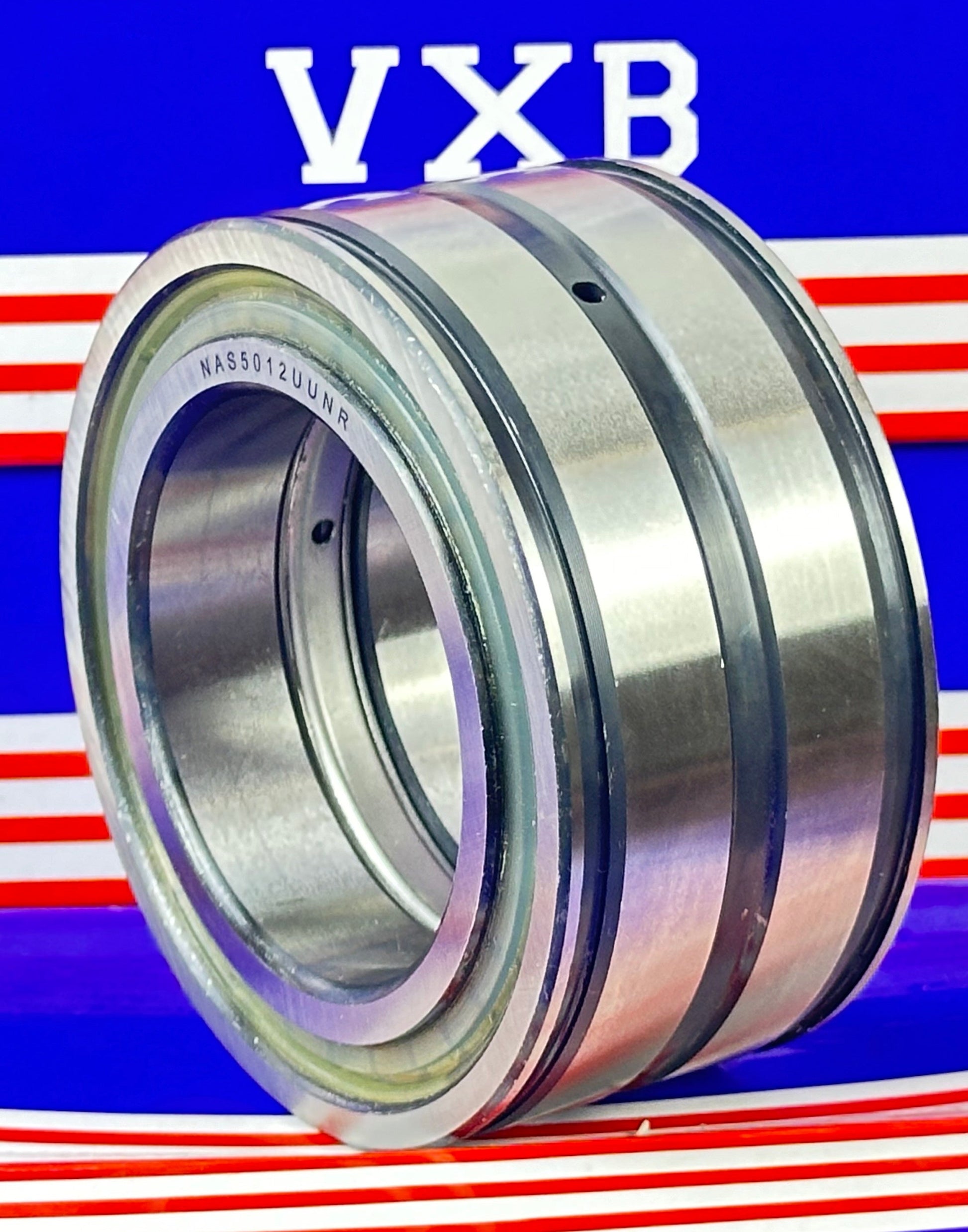

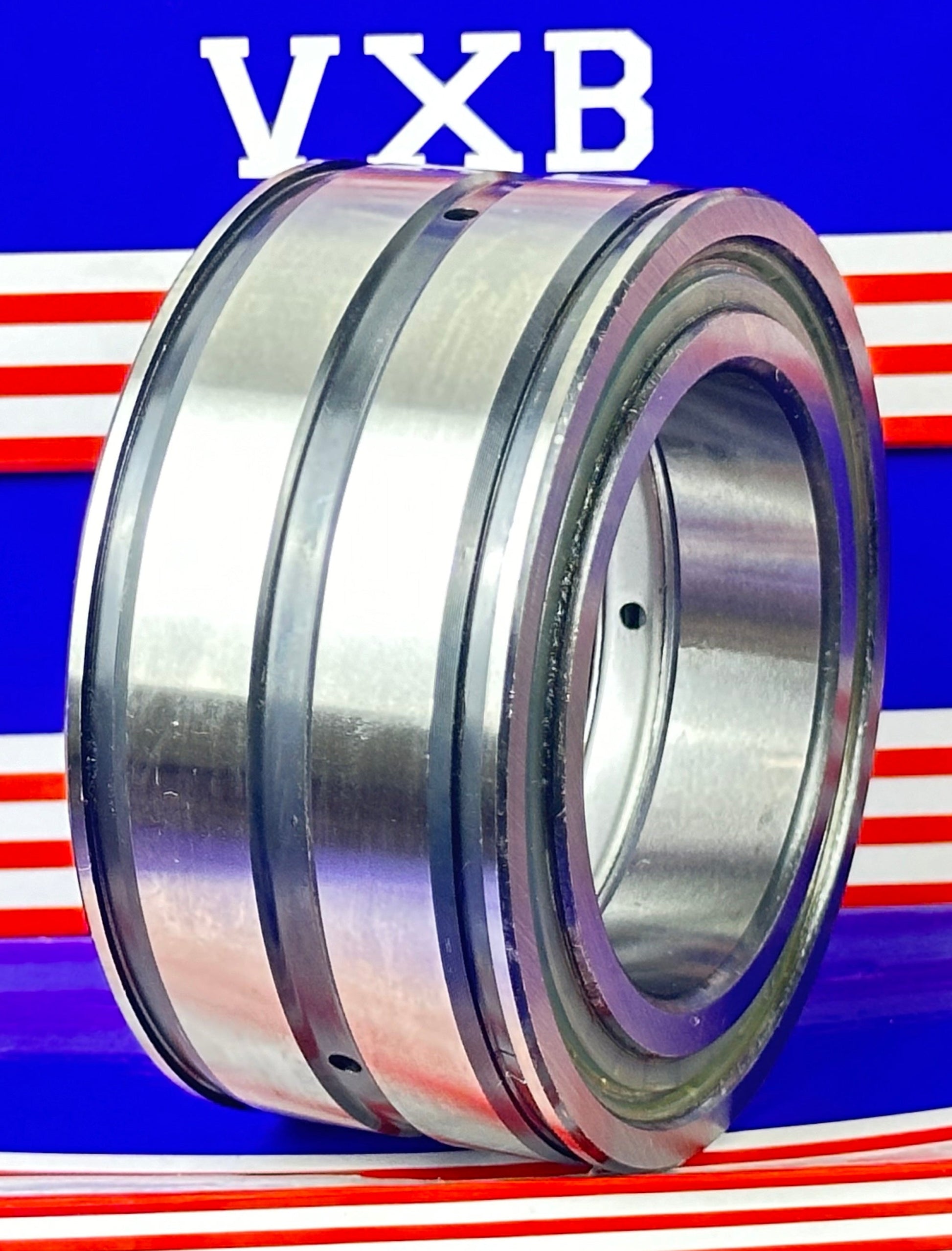

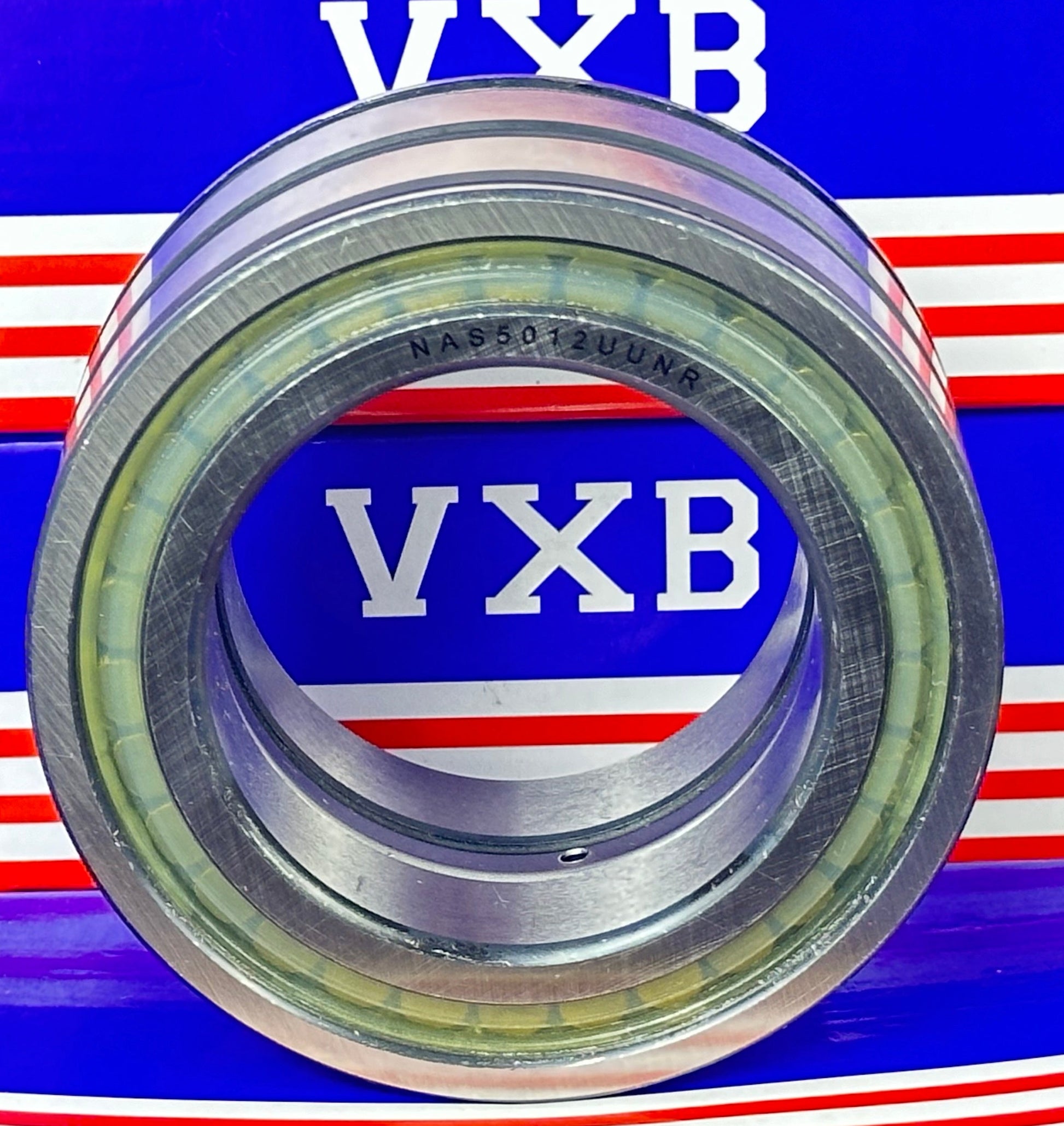

NAS5012UUNR Sheave Bearing 2-Row Full Complement Bearing

NAS5012UUNR Sheave Bearing, NAS5012UUNR is a double row full Complement cylindrical roller bearing, NAS5012UUNR has highest dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, NAS5012UUNR lubricates with a lithium soap-based grease containing an EP additive, NAS5012UUNR lubricates through lubrication hole & grooves only in inner ring.

• NAS5012UUNR Sheave Bearing
• Double Row Full Complement Cylindrical Roller Sheave Bearing

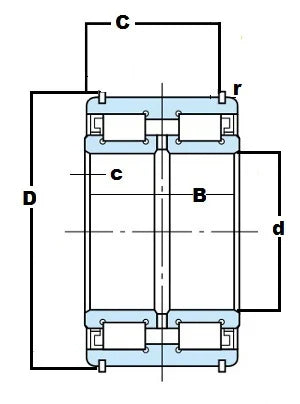

• Dimensions: 60mm x 95mm x 46mm/Metric
• ID (inner diameter)/Bore: 60mm
• OD (outer diameter): 95mm
• Width: 46mm
• Size: 60 x 95 x 46 mm
• Snap Ring: WRE 95 (not included)
• Quantity: 1 Bearing
• Dynamic load rating Cr: 123,000 N
• Static load rating Cor: 208,000 N
• Limiting Speed:
  • Grease Lubrication: 1,650 RPM
• Operating temperature: Suitable for -30 to +120 Celsius
• Application: Highly suitable in rope sheave
• Snap Ring: WRE
