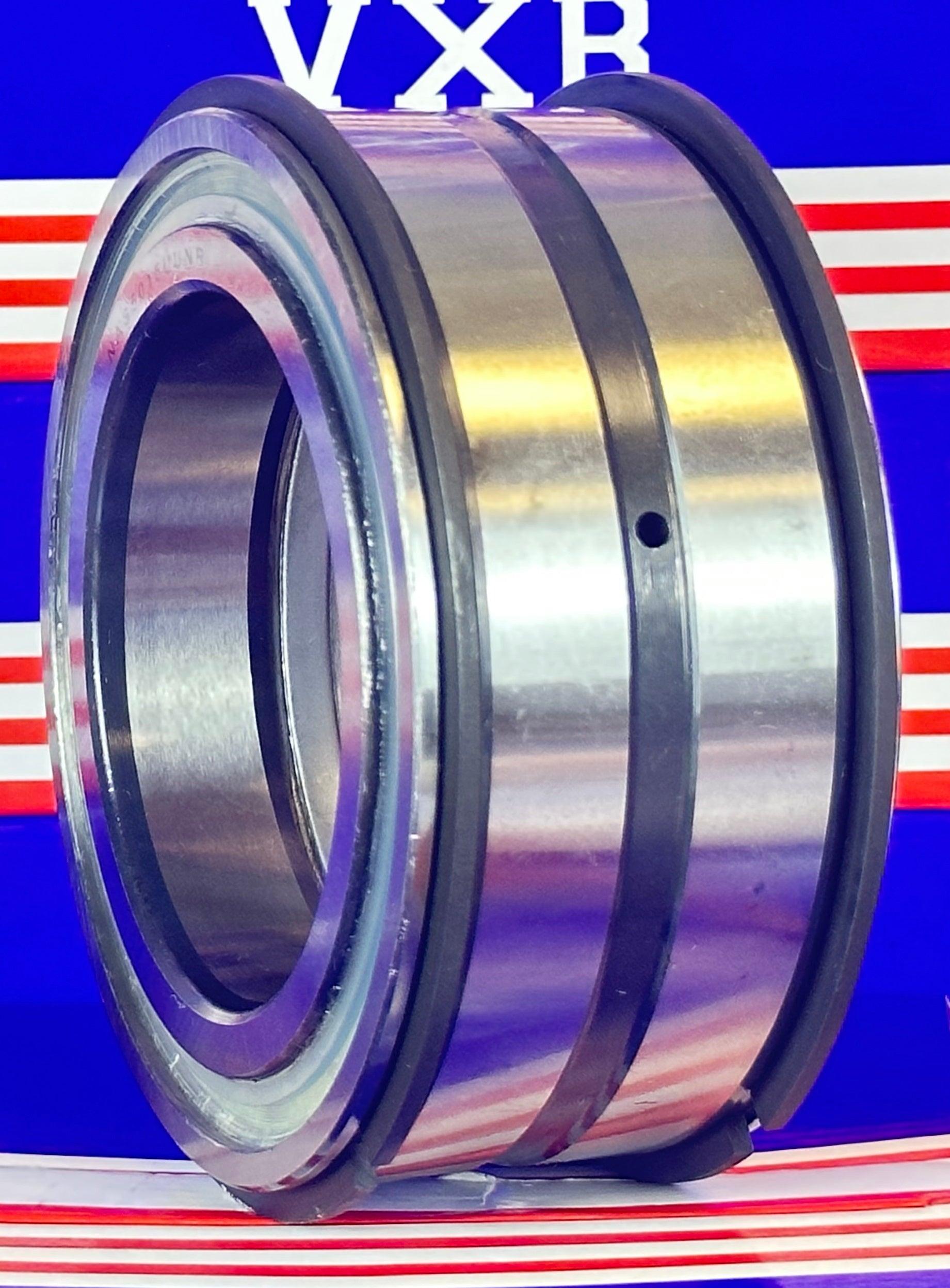

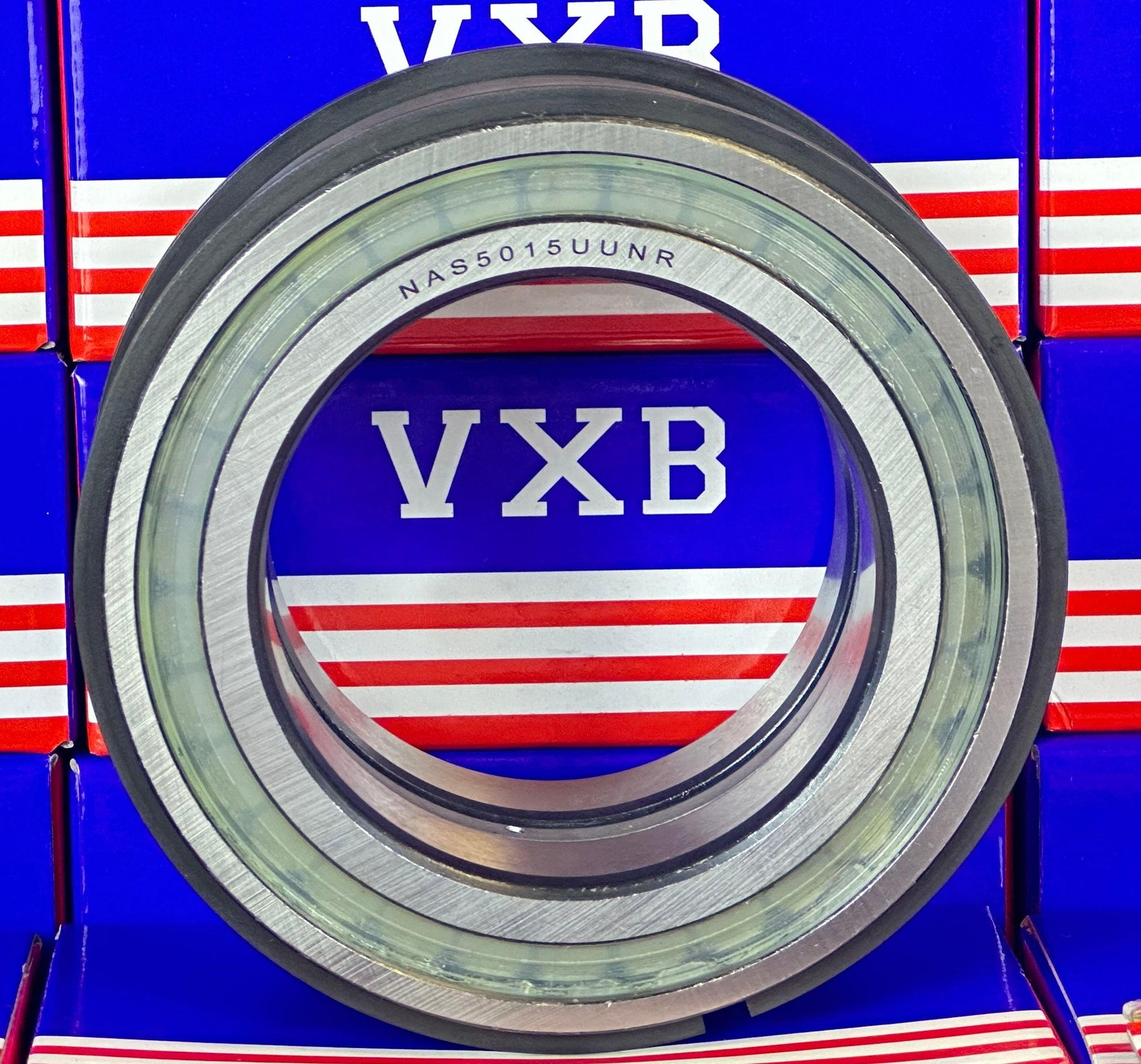

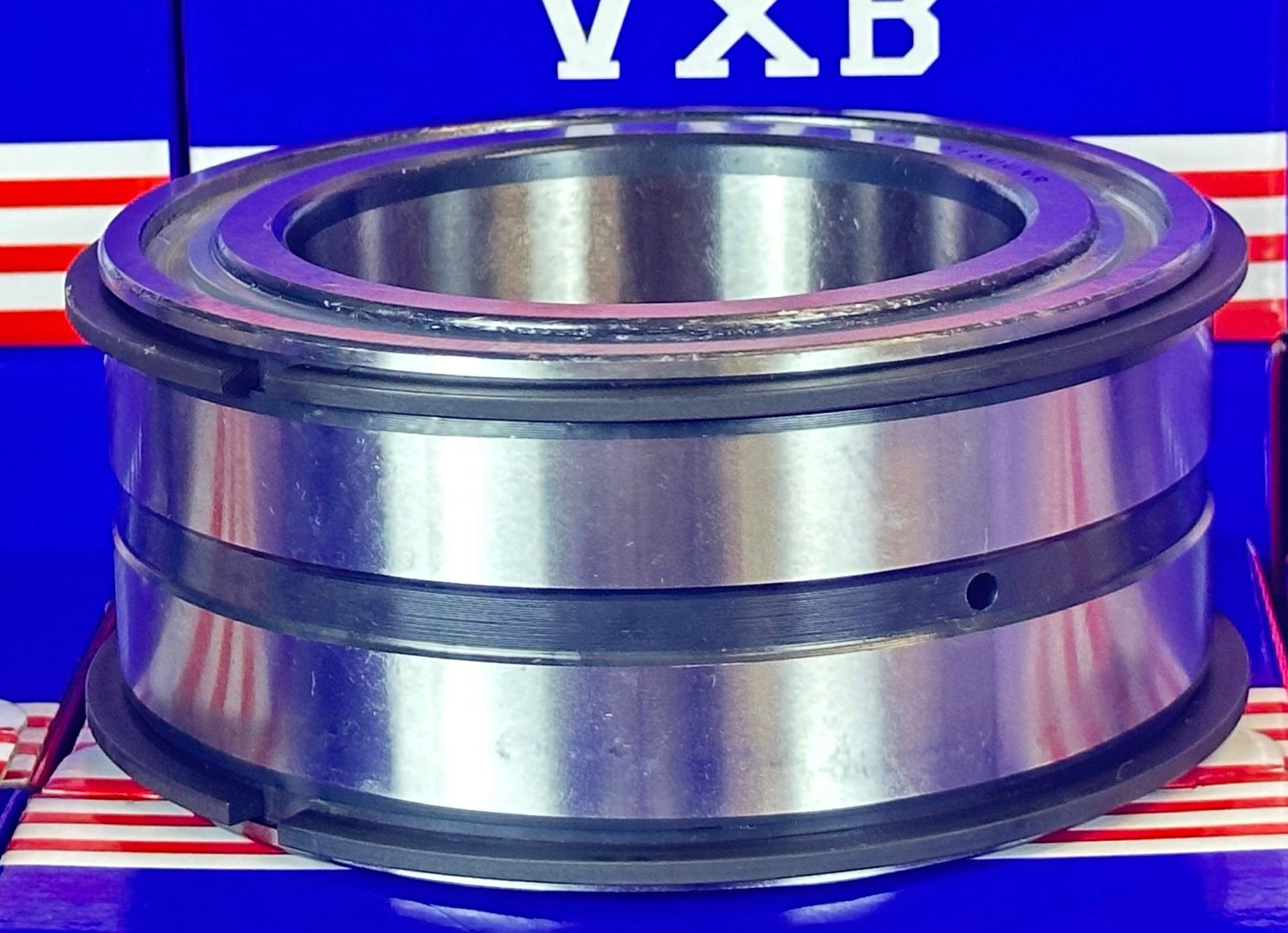

NAS5015UUNR Sheave Bearing 2-Row Full Complement Bearing

NAS5015UUNR Sheave Bearing, NAS5015UUNR is a double row full Complement cylindrical roller bearing, NAS5015UUNR has highest dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, NAS5015UUNR lubricates with a lithium soap-based grease containing an EP additive, NAS5015UUNR lubricates through lubrication hole & grooves only in inner ring.

• NAS5015UUNR Sheave Bearing
• Double Row Full Complement Cylindrical Roller Sheave Bearing

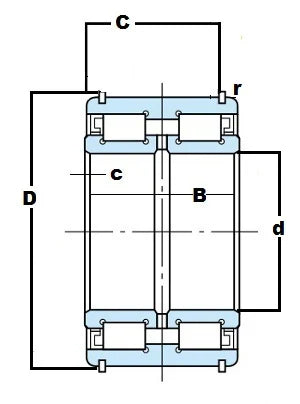

• Dimensions: 75mm x 115mm x 54mm/Metric
• ID (inner diameter)/Bore: 75mm
• OD (outer diameter): 115mm
• Width: 54mm
• Size: 75 x 115 x 54 mm
• Snap Ring: WRE 115 (not included)
• Quantity: 1 Bearing
• Dynamic load rating Cr: 177,000 N
• Static load rating Cor: 305,000 N
• Limiting Speed:
  • Grease Lubrication: 1,350 RPM
• Operating temperature: Suitable for -30 to +120 Celsius
• Application: Highly suitable in rope sheave
