NAS5024UUNR Sheave Bearing 2-Row Full Complement Bearing

NAS5024UUNR Sheave Bearing, NAS5024UUNR is a double row full Complement cylindrical roller bearing, NAS5024UUNR has high dynamic and static load ratings, bearing has Superior sealing capability and it has unique design rubber contact seal prevents dust & water invasion, NAS5024UUNR lubricates with a lithium soap-based grease containing an EP additive, NAS5024UUNR lubricates through lubrication hole & grooves only in inner ring.

• NAS5024UUNR Sheave Bearing
• Double Row Full Complement Cylindrical Roller Sheave Bearing

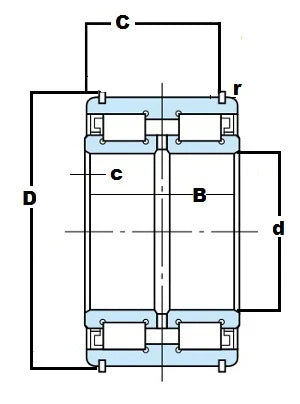

• Dimensions: 120mm x 180mm x 80mm/Metric
• ID (inner diameter)/Bore: 120mm
• OD (outer diameter): 180mm
• Width: 80mm
• Size: 120 x 180 x 80 mm
• Snap Ring: WRE 180 (not included)
• Quantity: 1 Bearing
• Dynamic load rating Cr: 400,000 N
• Static load rating Cor: 750,000 N
• Limiting Speed:
  • Grease Lubrication: 850 RPM
• Operating temperature: Suitable for -30 to +120 Celsius
• Application: Highly suitable in rope sheave
