NATB59/22 Combined Needle Roller Bearing - 3-Point Contact Ball Bearing 22x39x25mm
NATB59/22 Combined Needle Roller Bearing - 3-Point Contact Ball Bearing 22x39x25mm
Precio habitual
$48.00 USD
Precio habitual
$96.00 USD
Precio de oferta
$48.00 USD
Precio unitario
/
por
No se pudo cargar la disponibilidad de retiro
NATB 59/22 Needle Roller Bearing |
|

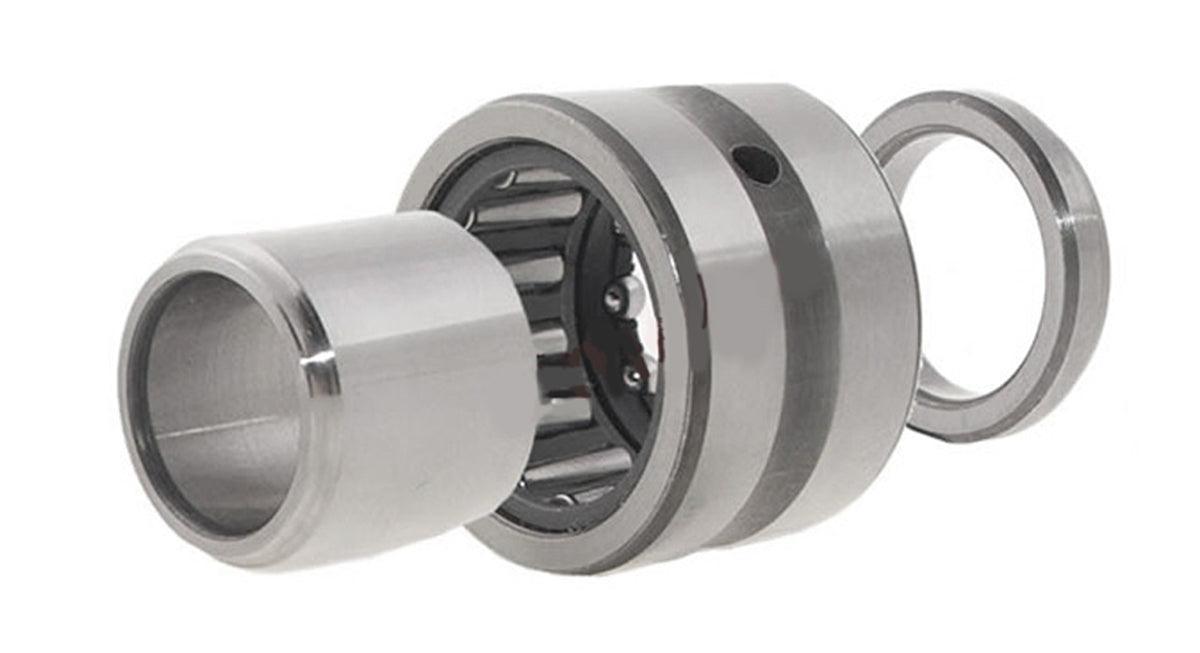

NATB59/22 is a combined Needle Roller Bearing with 3-Point Contact Ball Bearing 22x39x25 combined bearing type, needle roller bearing with angular contact thrust bearing, inner diameter is 22mm, the outer diameter is 39mm, width of the cone (inner ring) is 25mm.
|

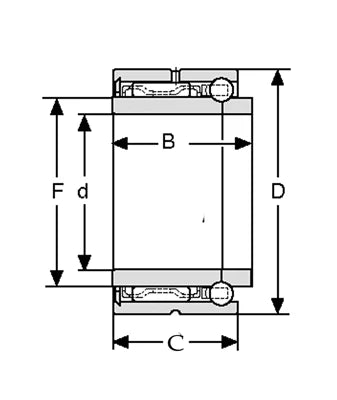

| d | D | B | C | F | r12 min. | da min. | Da max. | ra max | C | C0 |
| 22mm | 39mm | 25mm | 23mm | 28mm | 0.3mm | 24mm | 37mm | 0.3mm | 23.3 KN | 32 KN |
