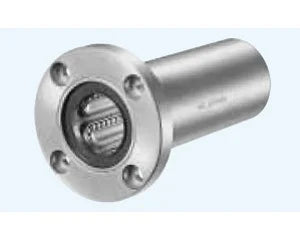

NB SMSF16GWUU 16mm Slide Bush Linear Motion Miniature Bushing Bearing
NB SMSF16GWUU 16mm Slide Bush Linear Motion Miniature Bushing Bearing
Precio habitual
$178.99 USD
Precio habitual
$274.00 USD
Precio de oferta
$178.99 USD
Precio unitario
/
por
No se pudo cargar la disponibilidad de retiro
| SMSF16GWUU Round Flange Double Wide Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Miniature Linear Systems |
SMSF16GWUU Round Flange Double Wide Anticorrosion Miniature Linear Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

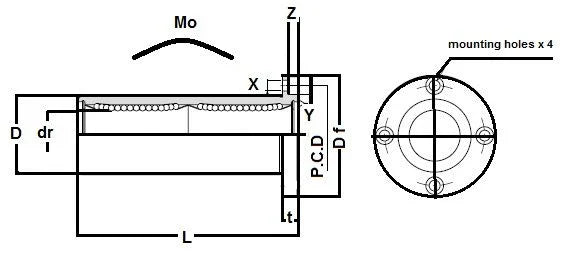

| Major Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | ||
| mm | tolerance | mm | tolerance | |||||
| 16 | 0-9 | 28 | 0-16 | 37 | 48 | 6 | 38 | 4.5 x 7.5 x 4.1 |
