NB TWA6WUU 3/8" Ball Bushing Block Linear Motion
NB TWA6WUU 3/8" Ball Bushing Block Linear Motion
Precio habitual
$164.99 USD
Precio habitual
$252.00 USD
Precio de oferta
$164.99 USD
Precio unitario
/
por
No se pudo cargar la disponibilidad de retiro

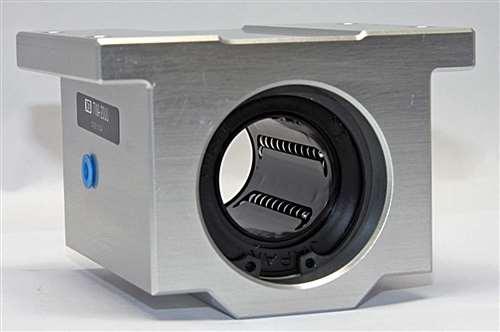

| TWA6WUU Pillow Block Slide Unit Nippon Bearing (NB) Linear Systems Made in Japan |
|
3/8" Double Wide Block, Slide Unit Pillow Block (Inch Series), the inner diameter(bore) 3/8" inch dimensions with steel retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
| Major Dimensions (inches) | Mounting Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | B | C | S |
| 1/2" | 7/8" | 1-3/4" | 2-3/4" | 15/16" | 3/16" | 7/8" | 1-1/8" | 1-7/16" | 2-1/4" | 5/32" |
