30 Inch Four-Point Contact 752x980x63mm Ball Slewing Ring Bearing - inside Gear
30 Inch Four-Point Contact 752x980x63mm Ball Slewing Ring Bearing - inside Gear
Prezzo di listino
$3,313.99 USD
Prezzo di listino
$5,070.00 USD
Prezzo scontato
$3,313.99 USD
Prezzo unitario
/
per
Impossibile caricare la disponibilità di ritiro

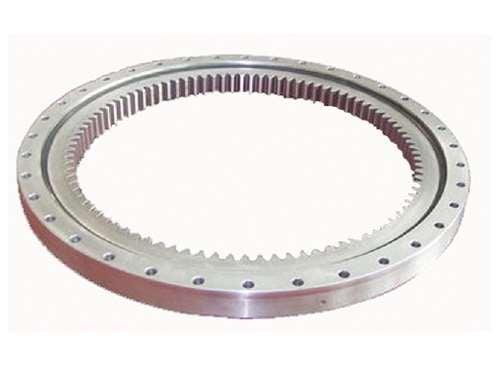

30 Inch Four-Point Contact 752x980x63 mm Ball Slewing Ring Bearing with inside Gear
| Four-Point Contact Ball Slewing Bearing with inside Gear |
A slewing bearing ring is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, or the wind-facing platform of a horizontal-axis windmill. (To 'slew' means to turn without change of place.) |
| Outside Dimensions(mm) | Shoulder Dimensions(mm) | Physical Dimensions(mm) | Gear Parameter | Gear Peripheral force | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dp | De | D | d | T | D0 | d0 |
n |
C |
M |
n1 |
d1 | D1 | B | S | b | m |
z |
x |
ha |
Normalizing (KN) | Slack Quench (KN) |
| VXB01325886 | 752 | 980 | 752 | 63 | 944 | 827 | 36 | 18 | 16 | 4 | 887 | 885 | 54 | 9 | 54 | 8 | 95 | 0.5 | 1 | 54 | 83 |
