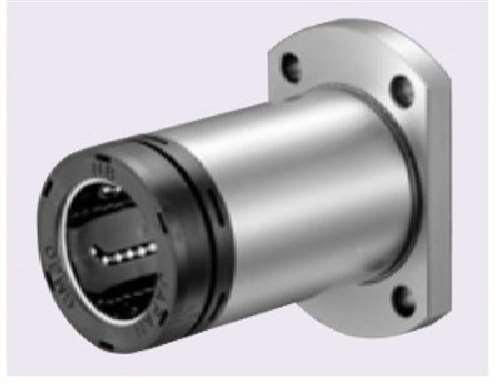

GMT16WUU NB 16mm Two Side Cut Double Wide Flange Motion Linear Bearing

GMT16WUU NB 16mm Two Side Cut Double Wide Flange Motion Linear Bearing

$93.99 USD
$144.00 USD $93.99 USD
In offerta Esaurito
GMT16WUU NB Two Side Cut Double Wide Flange:Slide Unit
Made in Japan:NB Linear Systems


GMT16WUU NB Two Side Cut Double Wide Flange Bearing, The inner diameter is 16mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • GMT16WUU NB Bearing
  • Linear Ball Bushing
  • Shaft Diameter: 16mm
  • Number Of Ball Circuits: 4
  • Allowable static Moment No: 13.8 N.M
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 1230 N
  • Static load rating Cor: 2350 N

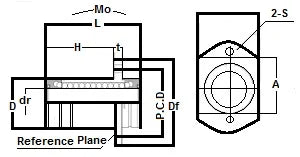

Major Dimensions
dr D L H Df t W A F S
mm tolerance mm tolerance
16 0-10 28 0-16 53 38.3 48 4 34 31 22 4.5
