SER-20S Bearing Insert 1-1/4" Mounted
SER-20S Bearing Insert 1-1/4" Mounted
Prezzo di listino
$73.99 USD
Prezzo di listino
$113.00 USD
Prezzo scontato
$73.99 USD
Prezzo unitario
/
per
Impossibile caricare la disponibilità di ritiro
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|

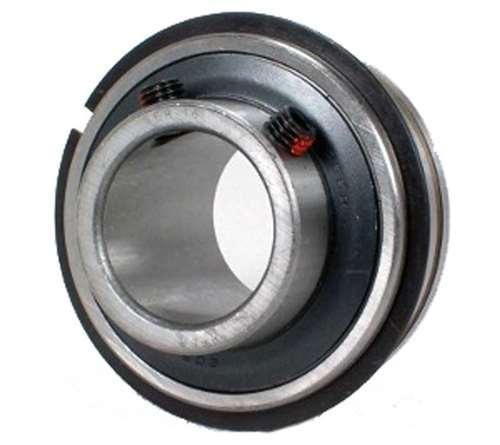

SER-20S Bearing Insert Set Screw Locking 1 1/4" Inch Inner Diameter |
SER-20S Bearing Insert, Bearing is Standard load capacity, bearing is Wide inner ring with cylindrical outer ring and snap ring, Bearing has relubrication groove with oil hole on side opposite of set screws, bearing has anti-rotation pin on side opposite grease groove, bearing is nylon patched class 3A Set Screws are standard, Standard seal is R-Seal.
|

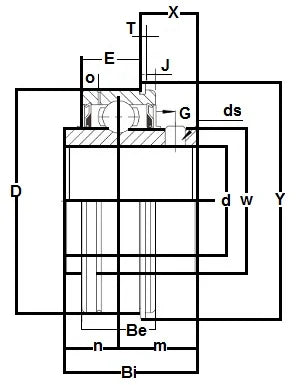

| Dimensions (Inches) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | n | m | E | W | o | T | J | G | Y | X | ds(UNF-Thread) |
| 2-7/16" | 1-1/2" | 7/8" | 5/8" | 7/8" | 5/8" | 1-9/16" | 7/32" | 5/64" | 1/8" | 7/32" | 2-9/32" | 5/8" | 1/4-28x1/4 |
