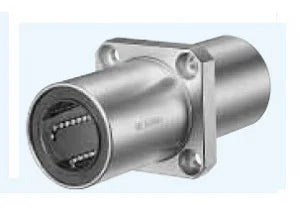

SMKC10G NB 10mm Slide Bush Bushings Miniature Motion Linear Bearing
SMKC10G NB 10mm Slide Bush Bushings Miniature Motion Linear Bearing
Prezzo di listino
$107.99 USD
Prezzo di listino
$165.00 USD
Prezzo scontato
$107.99 USD
Prezzo unitario
/
per
Impossibile caricare la disponibilità di ritiro
| SMKC10G NB Center Mount Square Flange Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMKC10G NB Center Mount Square Flange Linear Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

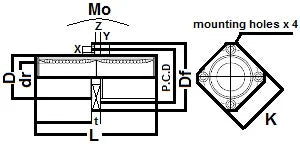

| Major Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | K | t | P.C.D | X x Y x Z | |||
| mm | tolerance | mm | tolerance | mm | tolerance | |||||
| 10 | 0-10 | 19 | 0-16 | 55 | 24.5 | 40 | 30 | 6 | 29 | 4.5 x 7.5 x 4.1 |
