SMST16WUU NB 16mm Slide Bush Bushings Miniature Motion Linear Bearing

SMST16WUU NB 16mm Slide Bush Bushings Miniature Motion Linear Bearing

Prezzo di listino $182.99 USD
Prezzo di listino $280.00 USD Prezzo scontato $182.99 USD
In offerta Esaurito

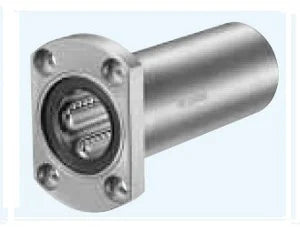

SMST16WUU NB Two Side Cut Double Wide Flange
Anticorrosion Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


SMST16WUU NB Two Side Cut Double Wide Flange Slide Bush, The retainer material is steel, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.

  • SMST16WUU NB Bearing
  • Linear Slide Bush
  • Retainer Material: Steel
  • Bearing Inner Diameter: 16mm
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 1230 N
  • Static Load Rating Cor: 2350 N

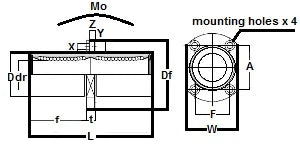

Major Dimensions
dr D L Df W t A F X x Y x Z
mm tolerance mm tolerance
16 0-10 28 0-16 70 48 34 6 31 22 4.5 x 7.5 x 4.1
