SMST20GWUU NB 20mm Slide Bush Bushings Miniature Motion Linear Bearing

SMST20GWUU NB 20mm Slide Bush Bushings Miniature Motion Linear Bearing

$240.99 USD
$369.00 USD $240.99 USD
In offerta Esaurito

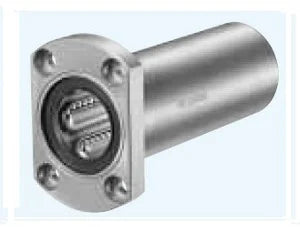

SMST20GWUU NB Two Side Cut Double Wide Flange
Anticorrosion Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

SMST20GWUU NB Two Side Cut Double Wide Flange Anticorrosion Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.

  • SMST20GWUU NB Bearing
  • Linear Slide Bush
  • Retainer Material: Resin
  • Bearing Inner Diameter: 20mm
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 1400 N
  • Static Load Rating Cor: 2740 N

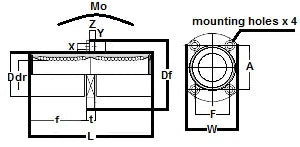

Major Dimensions
dr D L Df W t A F X x Y x Z
mm tolerance mm tolerance
20 0-12 32 0-19 80 54 38 8 36 24 5.5 x 9 x 5.1
