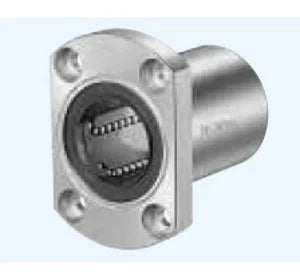

SMST8GUU NB 8mm Slide Bush Bushings Miniature Motion Linear Bearing
SMST8GUU NB 8mm Slide Bush Bushings Miniature Motion Linear Bearing
Prezzo di listino
$85.99 USD
Prezzo di listino
$132.00 USD
Prezzo scontato
$85.99 USD
Prezzo unitario
/
per
Impossibile caricare la disponibilità di ritiro
| SMST8GUU NB Two Side Cut Flange Anticorrosion Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SMST8GUU NB Two Side Cut Flange Linear Anticorrosion Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

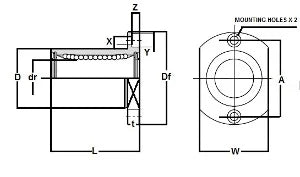

| Major Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | W | t | A | X x Y x Z | ||
| mm | tolerance | mm | tolerance | ||||||
| 8 | 0-9 | 15 | 0-13 | 24 | 32 | 21 | 5 | 24 | 3.5 x 6 x 3.1 |
