TRK12GUUE NB 12mm Slide Bush Bushings Miniature Motion Linear Bearing

TRK12GUUE NB 12mm Slide Bush Bushings Miniature Motion Linear Bearing

$131.99 USD
$202.00 USD $131.99 USD
In offerta Esaurito

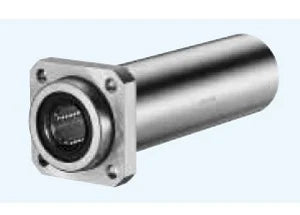

TRK12GUUE NB Triple Wide Square Flange
Pilot End Slide Bush
Made in Japan:NB Linear Systems

TRK12GUUE NB Triple Wide Square Flange Type Miniature Pilot End Slide Bush, The retainer material is resin, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.

  • TRK12GUUE NB Bearing
  • Linear Slide Bush
  • Bearing Inner Diameter: 12mm
  • Retainer Material: resin
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 813 N
  • Static Load Rating Cor: 1570 N

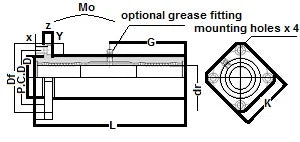

Major Dimensions
dr D L Df t P.C.D X x Y x Z
mm tolerance mm tolerance
12 0-15 26 0-21 84 46 6 36 4.5 x 7.5 x 4.1
