TRK12UU NB 12mm Slide Bush Bushings Miniature Motion Linear Bearing

TRK12UU NB 12mm Slide Bush Bushings Miniature Motion Linear Bearing

$146.99 USD
$225.00 USD $146.99 USD
In offerta Esaurito

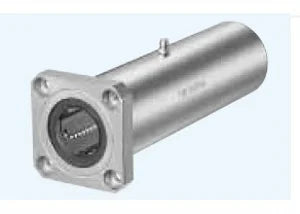

TRK12UU NB Triple Wide Square Flange Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

TRK12UU NB Triple Wide Square Flange Type Miniature Slide Bush, The retainer material is steel, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.

  • TRK12UU NB Bearing
  • Linear Slide Bush
  • Bearing Inner Diameter: 12mm
  • Retainer Material: steel
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 813 N
  • Static Load Rating Cor: 1570 N

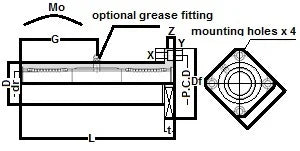

Major Dimensions
dr D L Df t P.C.D X x Y x Z
mm tolerance mm tolerance
12 0-15 26 0-21 84 46 6 36 4.5 x 7.5 x 4.1
