TRK30GUUE NB 30mm Slide Bush Bushings Motion Linear Bearing
TRK30GUUE NB 30mm Slide Bush Bushings Motion Linear Bearing
Prezzo di listino
$547.99 USD
Prezzo di listino
$838.00 USD
Prezzo scontato
$547.99 USD
Prezzo unitario
/
per
Impossibile caricare la disponibilità di ritiro

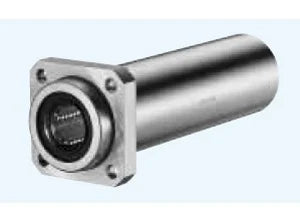

| TRK30GUUE NB Triple Wide Square Flange Pilot End Slide Bush Made in Japan:NB Linear Systems |
TRK30GUUE NB Triple Wide Square Flange Pilot End Type Miniature Slide Bush, The retainer material is resin, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

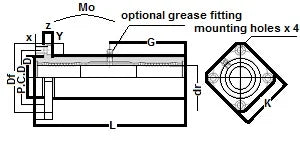

| Major Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | |||
| mm | tolerance | mm | tolerance | ||||||
| 30 | 0-18 | 52 | 0-30 | 182 | 82 | 10 | 67 | 6.6 x 11 x 6.1 | |
