TRKC10UU NB 10mm Slide Bush Bushings Miniature Motion Linear Bearing

TRKC10UU NB 10mm Slide Bush Bushings Miniature Motion Linear Bearing

$163.99 USD
$251.00 USD $163.99 USD
In offerta Esaurito

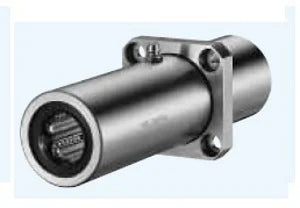

TRKC10UU NB Triple Wide Intermediate Position
Square Flange Slide Bush
Made in Japan:NB Linear Systems

TRKC10UU NB Triple Wide Intermediate Position Square Flange Miniature Slide Bush, The retainer material is steel, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.

  • TRKC10UU NB Bearing
  • Linear Slide Bush
  • Bearing Inner Diameter: 10mm
  • Retainer Material: steel
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 588 N
  • Static Load Rating Cor: 1100 N

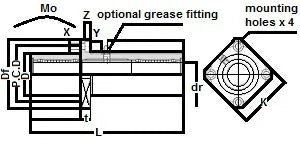

Major Dimensions
dr D L Df t P.C.D X x Y x Z
mm tolerance mm tolerance
10 0-12 23 0-21 80 43 6 33 4.5 x 7.5 x 4.1
