VXB

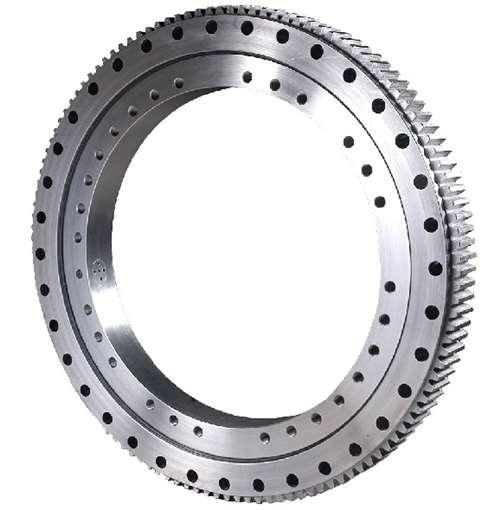

16 Inch Four-Point Contact 398x628.8x80mm Ball Slewing Ring Bearing - Outside Gear
16 Inch Four-Point Contact 398x628.8x80mm Ball Slewing Ring Bearing - Outside Gear
通常価格
$2,659.99 USD
通常価格
$4,070.00 USD
セール価格
$2,659.99 USD
単価
/
あたり
受取状況を読み込めませんでした
16 Inch Four-Point Contact 398x628.8x80 mm Ball Slewing Ring Bearing with Outside Gear
| Four-Point Contact Ball Slewing Bearing with Outside Gear |
A slewing bearing ring is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, or the wind-facing platform of a horizontal-axis windmill. (To 'slew' means to turn without change of place.) |
| Outside Dimensions(mm) | Shoulder Dimensions(mm) | Physical Dimensions(mm) | Gear Parameter | Gear Peripheral force | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dp | De | D | d | T | D0 | d0 |
n |
C |
M |
n1 |
d1 | D1 | B | S | b | m |
z |
x |
ha |
Normalizing (KN) | Slack Quench (KN) |
| VXB01230500001 | 628.8 | 628.8 | 398 | 80 | 566 | 434 | 20 | 18 | 16 | 4 | 501 | 498 | 70 | 10 | 60 | 6 | 102 | 0.5 | 0.9 | 45 | 62 |
