2 3/8" Bearing HCF212-38 Square Flanged Cast Housing Mounted Bearing - Eccentric Collar

2 3/8" Bearing HCF212-38 Square Flanged Cast Housing Mounted Bearing - Eccentric Collar

$102.00 USD
$170.00 USD $102.00 USD
セール 売り切れ
HCF212-38 Four Bolt Flanged Unit
Set Screw Type with Eccentric Collar
2 3/8" Inch Inner Diameter


HCF212-38 Four Bolt Flanged Square Mounted Cast Housing Bearing Unit is a set screw type mounted bearing with an inner diameter of 2 3/8" inches.

  • HCF212-38
  • Flange Mounted Bearing with Eccentric Collar
  • Bolt Size: 3/8" inch
  • Basic Load Dynamic (Cr): 52,400 N
  • Basic Load Static(Cor): 36,200 N
  • Bearing No: HC212-38
  • Housing No: F212
  • Quantity: 1 Bearing

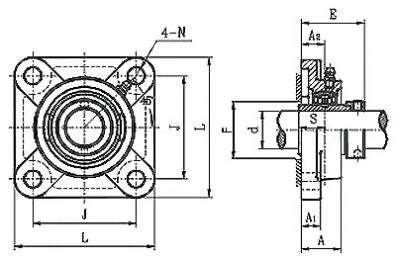

Dimensions (Inch)
d L J A2 A1 A E N S F min.
2 3/8" 6 7/8" 5 5/8" 1 5/32" 23/32" 1 7/8" 2 31/32" 23/32" 1 7/32" 3 1/32"
