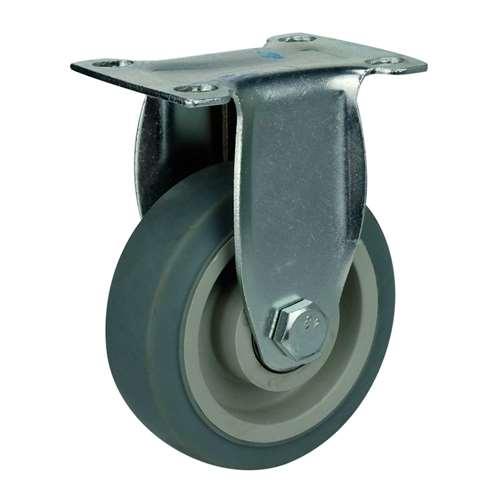

3" Caster Wheel Rigid - TPR - Top Plate

3" Inch Caster Wheel 176 pounds Rigid Thermoplastic Rubber Top Plate

VXB004075TPRF

Medium Duty

Wheel Diameter= 75mm

Wheel Width= 30mm

Wheel Diameter= 3" Inch = 75mm

Overall Height= 105mm

Overall Height Inch= 4.134"

Mounting Type= Top Plate

Top Plate Size= 93mm x 62mm

Hole distance= 45mm x 72mm

Wheel Core= Thermoplastic Rubber

Tire= Thermoplastic Rubber

Bearing type= Double ball bearing

Load Capacity= 176 lb

Mounting= Rigid

Temperature Range= -40 to 180 F

Tens of thousands of different kinds to select from to have your office Desk/chair sliding easily right and left, install the VXB004075TPRF. The wheel diameter is 75mm or 2.953" inch in inches. Dimensions of the caster wheel is 30mm (1.181" inch). The Caster with the wheel from end to end is 105mm = 4.134" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. Low drag was achieved by a Thermoplastic Rubber core on a Thermoplastic Rubber tire spinning freely with a Double ball bearing. Maximum load calpacity that should not be exceeded on each wheel, remember to add safety factor, when calculating the load capacity 176 lb with a Rigid type. Environment temperature range is -40 to 180 F. Very important notice, you need to buy the VXB004075TPRF in order to get one :).
