30mm Bearing Twin Block Slide unit Open Linear Motion
30mm Bearing Twin Block Slide unit Open Linear Motion
通常価格
$14.99 USD
通常価格
$164.99 USD
セール価格
$14.99 USD
単価
/
あたり
受取状況を読み込めませんでした

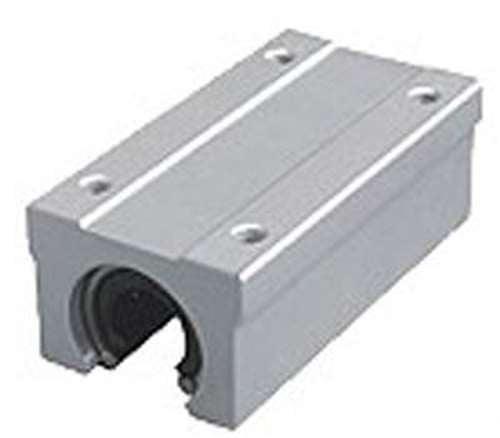

| Double Size Aluminium Pillow Block Open Slide unit with 2 pre-installed 30mm Ball bushing Can be used with 30mm Shafts |

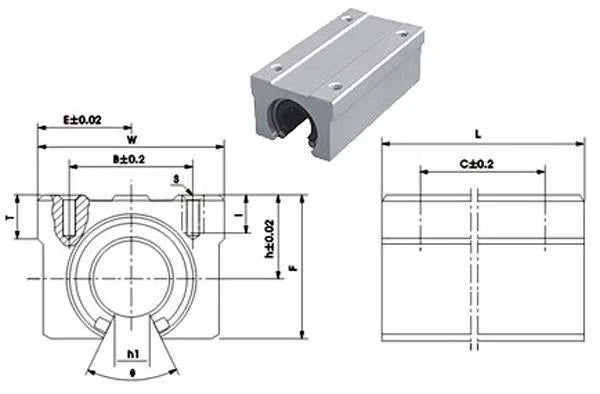

| Shaft Diameter | Main Dimensions (mm) | Mounting Dimensions (mm) | ||||||||||
| h | e | W | L | F | T | h1 | B | C | S | I | ||
| 30mm | 33 | 35 | 70 | 140 | 56 | 15 | 14 | 50 | 110 | M8 | 18 | |
